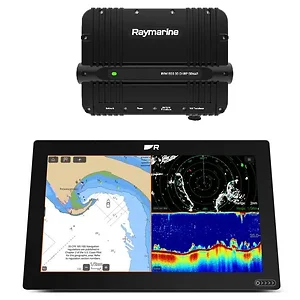

Raymarine Axiom2 XL 16 Bundle with RVM1600
Model: T70602The flagship of the Axiom family, Axiom 2 XL delivers powerful chartplotter performance, stylish large-format navigation, and the confidence of the LightHouse operating system. Designed for all weather conditions, the rugged yet beautiful Axiom 2 XL displays are at home in open cockpits or enclosed glass bridge stations. Enhanced with powerful 6-core processors, expanded networking, and ultra-bright HydroTough displays, Axiom 2 XL is the premium chartplotter for captains who demand the best.
Axiom 2 XL chartplotters do everything faster. Pan and zoom charts with ease and harness the full power of Axiom 2 XL with radar, sonar modules, autopilot, and video integrated seamlessly with the intelligent LightHouse operating system.
Axiom 2 XL's exclusive HydroTough™ nano-coating technology repels water for confident touchscreen control, beautiful colors, and excellent sunlight visibility.
Axiom 2 XL's ambient light sensor automatically adjusts display brightness for day and evening lighting conditions.
Navigate effortlessly with Axiom 2 XL's touchscreen or take command with the optional RMK-10 remote keypad. The RMK-10 provides full remote control of every Axiom on the helm.
Created from official hydrographic charts, you can trust LightHouse Charts and Axiom 2 XL for maximum readability, intuitive navigation, and superior quality.
Add a Quantum 2 radome or Cyclone open array radar and navigate safer with Doppler target tracking and radar/chart overlay.
FLIR thermal imaging and Axiom 2 XL turn night into day, keeping you safe and secure so you can boat with confidence.
Outfit Axiom 2 XL with CHIRP sonar modules. Choose the CP570 for deep water adventures or the RVM1600 with RealVision MAX SideVision, DownVision, and 3D fish finder.
Axiom 2 XL offers a suite of smart sailing features to help you optimize your performance under sail, including layline overlays, preloaded polars, sailing dashboards, and race timers.
Navigate with Confidence. Axiom 2 XL's intuitive LightHouse operating system makes everything easier. Integrate all navigation, engine and sensor data on a single display
Three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI Output, USB, and remote keypad options give you the power to design an Axiom 2 XL glass bridge with multiple Axiom displays, fish finder modules, marine radar, autopilot, thermal, and video cameras.
Specifications| Off current @ 12 V dc | PoE: 2,135 mA (25.62 W), No PoE: 352 mA (4.32 W) |
| Off current @ 24 V dc | PoE: 1,161 mA (27.6 W), No PoE: 352 mA (5.54 W) |
| PoE operating voltage range | 9.5 V dc to 32 V dc 9.5 V dc to 32 V dc |
| Current | 8.56 A |
| Fuse rating | 15 A |
| Nominal supply voltage | 12 V dc / 24 V dc |
| Operating temperature | -25°C to +55°C (-13°F to 131°F) |
| Storage temperature | -30°C to +70°C (-22°F to 158°F) |
| Relative humidity | up to 93% @ 40°C (104°F) |
| Waterproof rating | IPx6, IPx7 IPx6, IPx7 |
| Weight | 5.9 kg (13 lbs) |
| USB connection | USB-A: Touch input, USB-B: Touch output |
| Accessory connection | USB Micro B |
| GPS antenna connection | TNC type connector |
| External storage | Remote card reader required |
| Ethernet connection | PoE RayNet (10/100/1,000 Mbits/s) x 3 |
| HDMI connections | HDMI in, HDMI out HDMI in, HDMI out HDMI in, HDMI out |
| Audio output | Left and Right RCA connectors via Power/Video/Audio cable. |
| Analog video connections | Composite BNC connectors x 2 (Alarm/Video 1 connector, Power/Data/Video cable Video 2) |
| NMEA 2000 connection | DeviceNet connector Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) Via NMEA2000 using NMEA 0183 to NMEA 2000 convertor (part number A80721) |
| Wireless connections | Bluetooth: V4.0, Wi-Fi: Dual band (2.4 GHz and 5 GHz) 802.11/b/g/n |
| External alarm connection | Bare-ended wires x 2 Bare-ended wires x 2 |
| Internal storage | 64 GB Solid State |
| Input Voltage | 12 V dc / 24 V dc |
| Input Draw | 76.56 W @ 12V / 71.53 W @ 24V |
| Dimensions | Height: 248.22 mm (9.77 in), Width, 394.9 mm (15.55 in), Depth (including cables): 174.95 mm (6.89 in) |
The Raymarine Axiom2 XL 16 Bundle with RVM1600, part number T70602, is a marine chartplotter system designed for navigational and sonar applications on vessels. It features a 16-inch HydroTough display, engineered for visibility in various lighting conditions and water resistance. The system is powered by a 6-core processor and operates on the LightHouse operating system, facilitating chart panning, zooming, and integration with other marine electronics.
This bundle includes the RVM1600 sonar module, which provides RealVision MAX SideVision, DownVision, and 3D fish finder capabilities. Connectivity options include three RayNet Ethernet POE ports, NMEA2000, HDMI input/output, and USB, allowing for a networked setup with radar, autopilot, thermal cameras, and additional displays. The Axiom2 XL 16 is suitable for captains requiring a comprehensive navigation and sonar solution for both open cockpits and enclosed bridge stations, supporting enhanced situational awareness and operational control.
The Axiom2 XL 16 features an ultra-bright HydroTough display with nano-coating technology. This design repels water for touchscreen control, offers color reproduction, and maintains visibility in sunlight. It also includes an ambient light sensor for automatic brightness adjustments.
The system operates on a nominal supply voltage of 12 V dc / 24 V dc. It has a PoE operating voltage range of 9.5 V dc to 32 V dc and a fuse rating of 15 A. Current draw varies based on PoE usage and voltage.
The RVM1600 module is designed for advanced sonar applications, offering RealVision MAX SideVision, DownVision, and 3D fish finder capabilities. This makes it suitable for deep water adventures and detailed underwater imaging.
The Axiom2 XL 16 offers extensive connectivity, including three RayNet Ethernet POE ports, NMEA2000, HDMI input, HDMI output, USB-A for touch input, USB-B for touch, and options for a remote keypad. These ports support integration with radar, sonar modules, autopilot, thermal cameras, and video systems.
