T70321 - Raymarine RV-320 Thru-Hull Transducer Pack

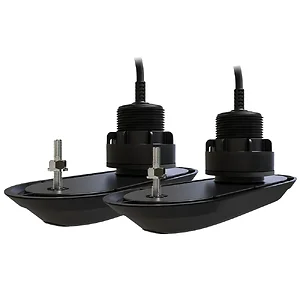

RV-320 Thru-Hull Transducer Pack

Experience exceptional sonar capabilities with the RV-320 Thru-Hull Transducer Pack designed for both inboard and outboard vessels. This advanced system features RealVision 3D™ sonar, allowing for superior identification of underwater structures and fish.

The RV-320 is a 4-channel Wide Spectrum CHIRP transducer system that includes DownVision™ and SideVision™ imaging, as well as high frequency CHIRP fish targeting. Its built-in attitude and heading reference system (AHRS) stabilizes sonar imagery and compensates for vessel motion, ensuring clear visuals even in rough conditions.

Equipped to accommodate hull deadrise angles from 14° to 26°, the RV-320 eliminates the need for fairing blocks with its innovative transducer design. The low-profile construction enhances performance by reducing drag and preventing cavitation while efficiently navigating through water.

Designed with durability in mind, the RV-320 features rugged plastic through-hull bodies compatible with fiberglass, steel, and aluminum hulls. The dual transducers provide comprehensive underwater coverage, sending signals to both port and starboard for a complete 180° view. Each transducer has a 2-meter pigtail, complete with a y-cable and an 8-meter extension cable, giving you a total of 10 meters (33 feet) of cable length for flexible installation.

In the Box:

• RV-320P Plastic Port Transducer with 2-meter cable
• RV-320S Plastic Starboard Transducer with 2-meter cable
• RealVision 3D Transducer Y-Cable
• RealVision 3D 8-meter (26-feet) Transducer Extension Cable
• Anti-rotation bolt kit
• Installation instructions

The Raymarine RV-320 Thru-Hull Transducer Pack, part number T70321, is a marine audio component designed to provide advanced sonar capabilities for both inboard and outboard vessels. This system utilizes RealVision 3D sonar technology, a 4-channel Wide Spectrum CHIRP transducer system that includes DownVision, SideVision imaging, and high-frequency CHIRP fish targeting. It is suitable for vessels with hull deadrise angles between 14� and 26�, eliminating the requirement for fairing blocks due to its design. The RV-320 features a built-in Attitude and Heading Reference System (AHRS) to stabilize sonar imagery, compensating for vessel motion in varying conditions. Its low-profile, rugged plastic thru-hull bodies are compatible with fiberglass, steel, and aluminum hulls, designed to reduce drag and prevent cavitation. The dual transducers offer a 180� underwater view, providing comprehensive coverage to both port and starboard. This pack is intended for IT and marine professionals requiring detailed underwater imaging for navigation, structure identification, and fish targeting.
