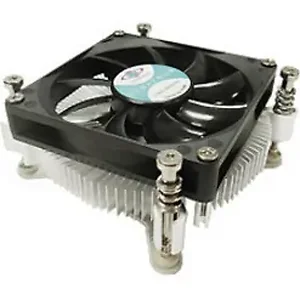

Dynatron T450 Fan T450 Core i7/i5/i3 LGA1155/1156/1150 80mm 2xBall Bearing 12V mini-ITX Brown Box

CPU Socket
1155/1156/1150

CPU Support
LGA1155: Intel 3rd. Generation Core i3/i5/i7 Desktop Processors
LGA 1156: Previous Generation Core i3/i5/i7 Desktop Processors
LGA 1150: support up to TDP 65 Watts Solution
Mini-ITX Form Factor (with chassis height 2-inch and up)

Overall Dimension
93.0 x 31.0 mm

Material
Aluminum 6063-T5 extruded radial fin heatsink Fan Dimension
80 x 80 x 15 mm

Speed
At Duty Cycle 20%: 800 RPM
At Duty Cycle 50%: 1500 RPM
At Duty Cycle 100%: 2500 RPM

Bearing
2 Ball Bearing Rated Voltage
12 V

Power
At Duty Cycle 20%: 0.36 W
At Duty Cycle 50%: 0.6 W
At Duty Cycle 100%: 2.4 W Air Flow
At Duty Cycle 20%: 9.24 CFM
At Duty Cycle 50%: 18.48 CFM
At Duty Cycle 100%: 30.80 CFM Noise Level
At Duty Cycle 20%: 16 dBA
At Duty Cycle 50%: 22 dBA
At Duty Cycle 100%: 27.3 dBA Air Pressure
At Duty Cycle 20%: 0.23 mm-H2O
At Duty Cycle 50%: 10.93 mm-H2O
At Duty Cycle 100%: 2.6 mm-H2O Lead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Techometer/Signal output)
Pin4-Blue (PWM) Weight:
0.5 lb

Warranty Information:
NA
