K17 - Dynatron 3U&Up&Workstation Server CPU Fan For Intel | Aztek Computers
29+Years
SKU: K8T1JNUTF3 |  Mfg. Part: K17  | UPC: 855700010220  |
 3 Reviews  |     Share

K17 - Dynatron 3U&Up&Workstation Server CPU Fan For Intel LGA1155/1156/1150

1 Available
Condition: New

$64.08  $86.51
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Interfaces/PortsConnectors: 4-pin PWMGeneral InformationProduct Type: Cooling Fan/HeatsinkManufacturer Part Number: K17Manufacturer Website Address: http://www.dynatron-corp.comManufacturer: Dynatron CorporationProduct Model: K17Product Name: K17 Cooling Fan/HeatsinkBrand Name: DynatronMiscellaneousApplication/Usage ProcessorCompatibility Intel Xeon Server Processor E3 Series Intel Core i7 Desktop Processors: 2600 2600K 880 875K 870 870S 860 860S Intel Core i5 Desktop Processors: 2500 2400 2310 2300 760 750 750S 680 670 661 660 655K 650 Intel Core i3 Desktop Processors: 2100 560 550 540 530 Pentium Desktop Processors: G850 G840 G6960 G6950 G620 G620T Certifications & Standards ULGreen Compliant YesGreen Compliance Certificate/Authority RoHSPhysical CharacteristicsMaterial: Aluminum FinFan Diameter: 1 x 3.62"Weight (Approximate): 1.17 lbForm Factor: InternalHeight: 4.3"Width: 3.6"Depth: 3.6"Fan Thickness: 1 x 0.98"Power DescriptionInput Voltage: 12 V DCWarrantyHeatsink InformationNumber of Heat Pipes: 4Compatible Processor Socket: Socket H3 LGA-1150Fan InformationAir Flow: 1 x 43.4 CFMFan Speed: 1 x 2500 rpmFan Bearing Type: Dual Ball BearingNumber of Fans: 1

Expert Overview

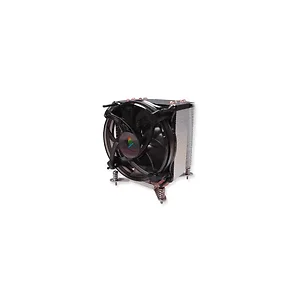

The Dynatron K17 is an internal CPU cooling fan and heatsink assembly designed for 3U and up server and workstation environments. This unit is engineered to provide thermal management for specific Intel processors utilizing LGA1155, LGA1156, and LGA1150 sockets. It features an aluminum fin heatsink with four heat pipes and a single 92mm dual ball bearing fan. The fan operates with a 4-pin PWM connector, allowing for variable speed control up to 2500 RPM and an airflow of 43.4 CFM at full duty cycle. The K17 is suitable for systems requiring a UL-certified and RoHS-compliant cooling solution for compatible Intel Xeon E3 series, Core i7, Core i5, Core i3, and Pentium desktop processors. It addresses the need for reliable CPU cooling in demanding operational settings.

Technical Specifications

CPU Socket
1155 / 1156 / 1150 CPU Support
LGA1155:
Intel Xeon Server Processor E3 Series
Intel Core i7 Desktop Processor 2600, 2600K, 880, 875K, 870, 870S, 860, 860S
Intel Core i5 Desktop Processor
2500,2400,2310,2300,760,750,750S, 680,670,661,660,655K, 650
Intel Core i3 Desktop Processor 2100,560,550,540,530
Pentium Desktop Processor G850, G840, G6960, G6950, G620, G620T Solution
3U and Up and Workstation Solution Material
Aluminum Fins
4 x Heat Pipes with H.C.C Technology Fan Dimensions
92 x 25mm Speed
All Duty Cycle 20%: 1000 RPM
At Duty Cycle 50%: 1.44W
All Duty Cycle 100%: 2500 RPM Bearing
2 Ball Bearing Rated Voltage
12 V Power
At Duty Cycle 20%: 0.96 W
At Duty Cycle 50%: 1.44 W
At Duty Cycle 100%: 3.0 W Air Flow
At Duty Cycle 20%: 17.34 CFM
At Duty Cycle 50%: 31.21 CFM
At Duty Cycle 100%: 43.36 CFM Noise Level
At Duty Cycle 20%: 17.0 dBA
At Duty Cycle 50%: 24.78 dBA
At Duty Cycle 100%: 31.92 dBA Air Pressure
At Duty Cycle 20%: 0.48 mm-H2O
At Duty Cycle 50%: 1.55 mm-H2O
At Duty Cycle 100%: 3.0 mm-H2O Lead Wire Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM) Item Dimension (L"xW"xH")
4 x 4 x 4.8

Weight
1.00 lb

Warranty Information
1 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Dynatron
  • K17
  • B006VYV9PE
  • 855700010220
  • New
  • 1.69 lbs
  • 5 X 5 X 5
  • Jul 21, 2026
  • Jul 22, 2020
Product Identifiers: Brand: Dynatron • Part #: K17 • UPC: 855700010220 • ASIN: B006VYV9PE • Category: CPU Fans & Heat Sinks

Frequently Asked Questions

What Intel CPU sockets is the Dynatron K17 compatible with?

The Dynatron K17 is compatible with Intel CPU sockets LGA1155, LGA1156, and LGA1150. It supports specific Intel Xeon E3 series, Core i7, Core i5, Core i3, and Pentium desktop processors.

What are the physical dimensions of this cooling fan/heatsink?

The Dynatron K17 has approximate dimensions of 3.6 inches in width, 3.6 inches in depth, and 4.3 inches in height. It weighs approximately 1.17 lbs.

What type of fan bearing does the K17 use and what is its maximum speed?

The K17 utilizes a dual ball bearing fan. This fan can achieve a maximum speed of 2500 RPM, providing an airflow of 43.4 CFM at 100% duty cycle.

Is the Dynatron K17 suitable for server environments?

Yes, the Dynatron K17 is designed for 3U and up server and workstation solutions. It is compatible with Intel Xeon Server Processor E3 Series, indicating its intended use in server applications.

K17 - Dynatron 3U&Up&Workstation Server CPU Fan For Intel LGA1155/1156/1150
