Condition: New
Fan InformationNumber of Fans: 1Fan Speed (rpm): 1 x 5000 rpmFan Bearing Type: Dual Ball BearingAir Flow: 1 x 26.5 CFMHeatsink InformationCompatible Processor Socket: Socket H2 LGA-1155, Socket H LGA-1156Interfaces/PortsConnectors: 4-pin PWMPower DescriptionInput Voltage: 12 V DCPhysical CharacteristicsMaterial: Aluminum/Copper HeatsinkForm Factor: InternalFan Diameter: 1 x 60 mmHeight: 2.5"Width: 3.6"Depth: 3.3"Weight (Approximate): 1.80 lbMiscellaneousCompatibility: Intel 2nd Generation Processors:Core i7-2600 SeriesCore i5-2500 SeriesIntel Xeon Processors:12201220L122512301235124012451260L1270127512803400 SeriesCore i7-870Core i7-860Core i3-530Core i3-540Core i5-650Core i5-650Core i5-660Core i5-661Core i5-670Core i5-750Application/Usage: ProcessorCertifications & Standards: ULEnvironmentally Friendly: YesEnvironmental Certification: RoHS

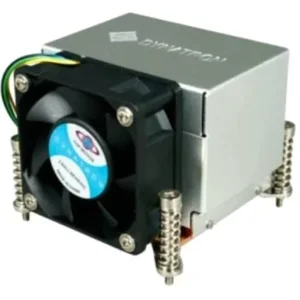

The Dynatron CPU Cooler K666 is an internal cooling solution designed for 2U server environments. This unit features an aluminum and copper heatsink with a heat pipe embedded, paired with a 60mm side-blow fan. The fan operates at 5000 RPM, providing 26.5 CFM of airflow, and utilizes a dual ball bearing for durability. It connects via a 4-pin PWM interface, allowing for controlled fan speed. The cooler is compatible with Intel Socket H2 LGA-1155 and Socket H LGA-1156 processor sockets, supporting a range of Intel 2nd Generation Core i7, Core i5, Core i3, and Xeon processors, including the Xeon 1200 and 3400 series. It is designed to support CPU power up to 95 Watts. The K666 comes with pre-printed thermal grease (TIG830SP) and includes a back strip set for captive mounting.
1. Material: Copper Base Aluminum Fins with Heat Pipe embedded.
2. 6025 Side-blow fan with PWM Function
3. Cooler Mounted in Captive design
4. Back Strip Set is included
5. With Thermal Grease TIG830SP Pre-printed
6. Support CPU Power up to 95 Watts Item Dimension (L"xW"xH") :
2.37 x 2.37 x 1 Dimensional Weight:
1.37 lb Warranty Information :
1 Year
This cooler is compatible with Socket H2 LGA-1155 and Socket H LGA-1156. It supports Intel 2nd Generation Core i7-2600/i5-2500 series, various Intel Xeon 1200 and 3400 series, and specific Core i7-800, Core i5-600/700, and Core i3-500 series processors.
The Dynatron K666 CPU Cooler includes the fan and heatsink assembly, a back strip set for captive mounting, and comes with TIG830SP thermal grease pre-printed on the base.
This CPU cooler is designed to support processors with a power draw of up to 95 Watts.
The heatsink has dimensions of approximately 3.6 inches (W) x 3.3 inches (D) x 2.5 inches (H). It is constructed from a copper base with aluminum fins and features an embedded heat pipe.
K666 - Dynatron CPU Cooler K666 2U LGA1156/1155 Aluminum Heatsink/ Fan Retail
