Apc - Schneider Electric SU700X167 APC Smart-UPS 700VA w/Auto Select Input Voltage 120V/230V In 120V Out- Not sold in CO

General Information

---

Manufacturer:Schneider Electric SA
Manufacturer Part Number:SU700X167
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Line:Smart-UPS
Product Name:Smart-UPS 700VA
Marketing Information:Performance power protection for servers and networks APC Smart-UPS protects your data by supplying reliable, network-grade power in either traditional Tower or Rack-optimized form factors for space constrained business critical applications. Award winning APC Smart-UPS is the perfect UPS for protecting business critical fileservers (Intel or UNIX based), minicomputers, network switches and hubs, Point of Sale, retail/bank back office and ATM's. Rack Mount versions are the choice for rack optimized servers, server appliances, blade servers, other blade devices and rack-mounted network switches and hubs.
Product Type:Line-interactive UPS

Technical Information

---

Plug/Connector Type:NEMA 5-15P
Receptacle Type:NEMA 5-15R

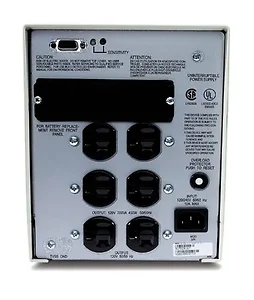

Receptacle Detail:6 x NEMA 5-15R
Emergency Power OFF:Optional
Cord Length:6 ft

Power Description

---

Load Capacity:700 VA
Input Voltage:110 V AC
Output Voltage:120 V AC
Power Consumption:450 W
Waveform Type:Sine Wave
Surge Energy Rating:480 J

Management

---

Alarm:

• On Battery
• Low Battery

Battery Management:Intelligent Battery Management

Controls/Indicators

---

Status Indicators:LED status display with load and battery bar-graphs and On Line, On Battery, Replace Battery and Overload Indicators.

Interfaces/Ports

---

Serial Port:Yes
Total Number of Expansion Slots:1

Battery Information

---

Battery Characteristics:Spill-proof, Maintenance-free
Battery Chemistry:Lead Acid
Backup/Run Time (Full Load):12.50 Minute
Backup/Run Time (Half Load):40.90 Minute
Typical Battery Recharge Time:3 Hour
Hot Swappable:Yes

Environmental Conditions

---

Maximum Operating Temperature:113°F (45°C)
Sound Emission (A-Weighted):45 dB(A)
Thermal Dissipation:39.56 W

Physical Characteristics

---

Product Color:Beige
Height:8.5"
Width:6.7"
Depth:17.3"
Form Factor:Tower
Weight (Approximate):53 lb

Miscellaneous

---

Package Contents:

Smart-UPS 700VA

CD with software

Smart UPS signalling RS-232 cable

User manual

Additional Information:

• Automatic Voltage Regulation (AVR)
• Building wiring fault indicator

Certifications & Standards:

• CSA
• FCC A
• UL 1778
• UL 1449

Environmentally Friendly:Yes
Country of Origin:United States

Warranty

---

Limited Warranty:2 Year
