Technical Specifications
Hardware
Ports:1
Interface:RJ45 (10 Gigabit Ethernet)
Bus Type:PCI Express
Card Type:Standard Profile (LP bracket incl.)
Industry Standards:IEEE 802.3an (10GBASE-T), IEEE 802.3ab (1GBASE-T), IEEE 802.3u (100BASE-T), IEEE 802.3az (EEE Energy Efficient Ethernet)
PCI Express Rev 2.0
Chipset ID:
Tehuti - TN4010
Marvell - 88X3110 Connector(s)
Connector Type(s):1 - PCI Express x4 Male
External Ports:1 - RJ-45 Female Performance
Maximum Data Transfer Rate:10 Gbps
Compatible Networks:100/1000/10000 Mbps (10Gb)
Full Duplex Support:Yes
Supported Protocols:IEEE 802.3ad (link aggregation), IEEE 802.1q (VLAN tagging), RFC 2819 (RMON MIB statistics) Software
OS Compatibility:
Windows 8 / 8.1 (32/64bit), 7 (32/64)
Windows Server 2012, 2008 R2
Linux 2.6.24 and up (Tested up to 3.5)
VMWare ESXi 5.0/5.1 and Microsoft Hyper-V Special Notes / Requirements
System and Cable Requirements:Available PCI Express x4 slot
Included in Package

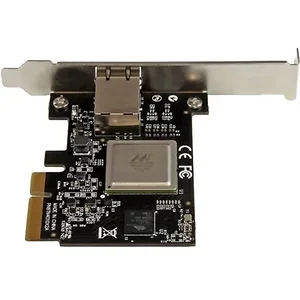

1 - 1 Port PCI Express 10GBase-T Network Card
1 - Low Profile Bracket
1 - Driver CD
1 - Instruction Manual Item Dimension (L"xW"xH"):
6.57 x 5.51 x 1.1
Weight:
0.32 lb
Warranty Information:
2 Years Warranty
