14 Available
Condition: New

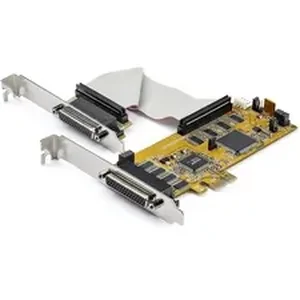

The STARTECH PEX8S1050LP is an 8-port PCI Express RS232 serial adapter card designed for desktop computers. It enables the addition of eight DB9 serial ports via two PCIe expansion card slots, utilizing a 16C1050 UART. It addresses connectivity challenges for devices such as printers, scanners, credit/debit card readers, PIN pads, modems, and industrial controls. The card supports data transfer rates up to 921.4Kbps and features 15kV ESD protection. Its low-profile design, with included full-profile brackets, allows for installation in both small form factor and standard computer cases. Broad operating system support, including Windows and Linux, facilitates integration into diverse IT environments. The package includes two breakout cables, each providing four DB9 connectors, ensuring immediate multi-device connectivity.
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX8S1050LP |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 8-Port PCI Express Serial Card with 16C1050 UART |
| Versatile Use | |
| Maximum Compatibility | With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. |
| Packaged Quantity | 1 |
| Product Type | Multiport Serial Adapter |
| Technical Information | |
| Host Interface | PCI Express x1 |
| Maximum Data Transfer Rate | 921.40 kbit/s |
| Interfaces/Ports | |
| Ports Expandability | 8 x DB-9 - Serial, Via Cable |
| Physical Characteristics | |
| Product Color | Yellow |
| Form Factor | Plug-in Card |
| Miscellaneous | Package Contents: |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
Add eight RS-232 DB9 serial ports to your desktop computer, through two PCIe expansion card slots. This PCI express serial card, with two breakout cables, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes 2 breakout cables - each with 4 DB9 connectors.
The low profile PCIe serial card is the ideal choice for adding serial ports, even when space is at a premium. The DB9 serial card is designed to fit into small form factor and standard computer cases. The card comes pre-configured with a low-profile bracket, and includes two optional full-profile brackets, so installation is easy regardless of the case form factor.
