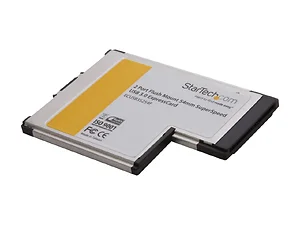

Startech ECUSB3S254F Add Two Flushmount USB 3.0 Ports to Your Expresscard-Enabled Laptop 2 Port Flu

SKU: JX0CSC7IN5 |  Mfg. Part: ECUSB3S254F  | UPC: 065030843577  |  0 Reviews  |  Share

8 Available / 1 Sold
Condition: New

$60.34  $81.46
 Free Shipping for this Item
 Free pickup in Frisco, TX
Ready in 3–5 business days. Choose “Local Pickup” at checkout.

Product Overview

Add two flushmount USB 3.0 ports to your ExpressCardenabled laptop Compatible with Dell Latitude E5530 2 Port Flush Mount 54mm ExpressCard USB 3.0 Card Adapter with UASP Support ExpressCard USB 3 Controller 5 Gbps USB 3.0 Expresscard Expresscard Laptop Card 2Port USB 3.0 Adapter Card 54mm USB3 Card EC USB 3.0 Card with UASP 2 Port Notebook USB 3.0 Express Card with optional builtin external DC power connector Expand laptop expansion capabilities with additional USB ports

Technical Specifications

General Information
ManufacturerStarTech.com
Manufacturer Part NumberECUSB3S254F
Manufacturer Website Addresshttp://www.startech.com
Brand NameStarTech.com
Product Name2 Port Flush Mount ExpressCard 54mm SuperSpeed USB 3.0 Card Adapter
Product TypeUSB Adapter
Technical Information
Host InterfaceExpressCard/54
Interfaces/Ports
Total Number of USB Ports2
Number of USB 3.0 Ports2
Physical Characteristics
Form FactorPlug-in Module
Height0.2"
Width2.1"
Depth2.9"
MiscellaneousPackage Contents:
Platform SupportedPC
Environmentally FriendlyYes
Country of OriginTaiwan
TAA CompliantYes
Warranty
Limited Warranty2 Year

Enhanced with UASP support (USB Attached SCSI Protocol), this USB 3.0 controller performs up to 70% faster than conventional USB 3.0 when paired with a UASP supported enclosure (Note: UASP requires a compatible operating system). Using a more efficient protocol than the traditional USB BOT (Bulk-Only Transport), UASP technology optimizes transfers by allowing multiple commands to be processed simultaneously, significantly increasing transfer speeds for less wait time on data transfers. See our UASP test results below for further details.

The SuperSpeed USB 3.0 Card supports data transfer rates of up to 5Gbps, and is backward compatible with USB 2.0 (at up to 480Mbps), or USB 1.1/1.0 at up to 1.5/1.2 Mbps respectively - the perfect laptop accessory for users to connect USB devices, both new and old.

  • Marketing Information:
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support.
  • Improved Performance with UASP
  • UASP is supported in Windows® 8 and Server 2012. In testing UASP performed with up to a 70% faster read / 40% faster write speed over traditional USB 3.0 at peak performance.
  • At the same peak in testing, UASP also showed up to an 80% reduction in required processor resources.
  • Test results were obtained using an Intel® Ivy Bridge system, StarTech.com add-on USB 3.0 cards, a UASP-enabled StarTech.com enclosure, and a SATA III solid state drive.
  • 1 x ExpressCard USB 3.0 Card
  • 1 x USB to DC Power Adapter Cable
  • 1 x Driver CD
  • 1 x Instruction Manual
  • Additional Information:
  • Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64)
  • Windows Server® 2008 R2, 2003
  • Environmental Certification:
  • RoHS
  • REACH
  • WEEE

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Shipping Weight:
  • Package Size:
  • TAA Compliant:
  • Country of Origin:
  • Category:
  • Date First Available:
  • STARTECH
  • ECUSB3S254F
  • B00535CMEE
  • 065030843577
  • New
  • 5 lbs
  • 7 x 6 x 1 in
  • Yes
  • TW
  • Port Expansion Cards
  • July 24, 2020
