3004 - Shakespeare SeaWatch® 4" Marine TV Antenna - 12VDC - 110VAC

• Low noise amplifier

• Omni-directional

• Recieves ALL local HD broadcast signals

• AC, DC and USB power adapter

• Best suited for areas up to 15 Miles from Broadcast Towers

• Frequency Range: VHF:47-230MHz;UHF: 470-862MHz

• Receiving Range: FM/VHF/UHF

• Gain: 30dB

• Noise Figure: 3db

• Max. output lever: 110dBuV

• Impedance: 75ohms

• Connector: F-connectors

• Power Supply: DC 12V, AC 110v

• Dimensions: 8" x 4"

• 3004 Panel TV Antenna

• 20' RG-59 Coax Cable/F-Connectors

• USB/AC/DC Power Cords

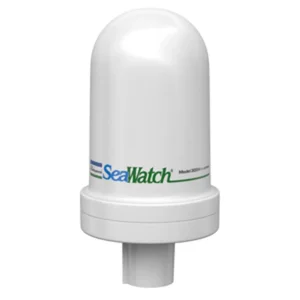

The Shakespeare SeaWatch� 4" Marine TV Antenna (part number 3004) is an omni-directional over-the-air digital HDTV solution designed for mobile applications. This antenna provides 360-degree coverage for receiving local HD broadcast signals, supporting VHF (47-230MHz) and UHF (470-862MHz) frequencies. It is suitable for marine vessels, RVs, and pop-up campers, offering a reliable way to access television programming in areas up to 15 miles from broadcast towers.

The antenna features a low noise amplifier with 30dB gain and a 3dB noise figure, ensuring signal clarity. It is designed to accept common 1in-14 threaded mounts for flexible installation. Powering options include 12VDC and 110VAC, with an included USB/AC/DC power adapter. The package contains the antenna, a 20' RG-59 coax cable with F-connectors, and the necessary power cords, providing the essential components for immediate connection to a converter or television.
