Product Overview

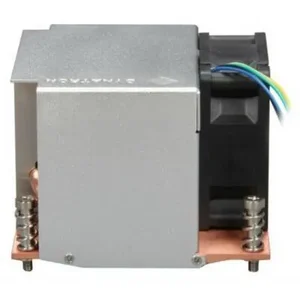

Description: The Dynatron R5 2U Server Active CPU Cooler is designed for Intel Sandy Bridge EP/EX Processors up to 150 Watts. An H.C.C. (Heatpipes Contact CPU) copper base works in tandem with aluminum fins with 6mm heatpipes embedded to quickly transfer the heat from CPU while a 60mm dual-ball bearing PWM fan delivers quiet, efficient airflow for your cooling needs. The standard server board bolt-thru mounting mechanism and pre-applied thermal grease make this cooler easy to install as well.; Features: INTELLIGENT H.C.C; The Dynatron R5 2U Server Active CPU Cooler features a copper base that is in direct contact with the CPU to enhance heat conduction.; 150-WATT COOLING COLUTION; Four 6mm heatpipes integrated with H.C.C (Heatpipes Contact CPU) copper base and high-density aluminum fins, plus an active side 2 ball bearing PWM fan, deliver up to 150 watts of cooling capability for Intel Sandy Bridge EP/EX Processors.; ROHS COMPLIANT; The Dynatron R5 2U Server Active CPU Cooler is ful
Technical Specifications
CPU Support
Intel Sandy Bridge EP/EX Processors up to 150 Watts
Solution
2UUp Server
Material
H.C.C.(Heatpipes Contact CPU) Copper Base and Aluminum Fins with Heatpipes embedded Fan Dimension
60 x 60 x 25 mm
Speed
At Duty Cycle 020%: 1600 RPM
At Duty Cycle 50%: 4000 RPM
At Duty Cycle 100%: 8000 RPM Bearing
2 Ball Bearing
Rated Voltage
12 V
Power
At Duty Cycle 020%: 0.60 W
At Duty Cycle 50%: 1.8 W
At Duty Cycle 100%: 7.2 W Air Flow
At Duty Cycle 020%: 8.75 CFM
At Duty Cycle 50%: 21.88 CFM
At Duty Cycle 100%: 43.75CFM
Noise Level
At Duty Cycle 020%: 16.85 dBA
At Duty Cycle 50%: 35.94 dBA
At Duty Cycle 100%: 51.00 dBA Air Pressure
At Duty Cycle 020%: 0.70 mm-H2O
At Duty Cycle 50%: 4.42 mm-H2O
At Duty Cycle 100%: 17.70 mm-H2O
Lead Wire Pin Out
Pin1-Black (-)
Pin2-Yellow (+)
Pin3-Green (Tachometer/Signal output)
Pin4-Blue (PWM) Item Dimension (L"xW"xH"):
3.66 x 3.66 x 2.64
Weight:
1.55 lb
Warranty Information:
1 Year
