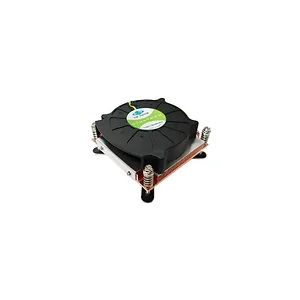

P199 - Dynatron Copper CPU Cooler for Intel 775 Processors

Specifications

• Supports power up to 130 Watts; Refer to system arrangement
• Orientation switchable without interference from board components
• Slim sized backplate prevents solder joint impact on all system boards
• Compatible with Intel Socket 775 Quad Core Q6700, Q6600, Core 2 Extreme X6800, Core 2 Duo E6850, Pentium Dual-Core E2180, Pentium D 960, and Socket 775 Dual-Core Xeon 3000 series for 1U servers
• Heatsink Material: Copper
• Fan Speed:
  • At Duty Cycle 20%: 1000 RPM
  • At Duty Cycle 50%: 2500 RPM
  • At Duty Cycle 100%: 5000 RPM
• Bearings: Dual Ball
• Air Flow:
  • At Duty Cycle 20%: 2.508 CFM
  • At Duty Cycle 50%: 7.214 CFM
  • At Duty Cycle 100%: 15.0 CFM
• Noise Level:
  • At Duty Cycle 20%: 20.5 dBA
  • At Duty Cycle 50%: 35.6 dBA
  • At Duty Cycle 100%: 49.8 dBA
• Air Pressure:
  • At Duty Cycle 20%: 0.032 inch-H2O
  • At Duty Cycle 50%: 0.338 inch-H2O
  • At Duty Cycle 100%: 1.424 inch-H2O
• Rated Voltage: 12 V
• Power Consumption:
  • At Duty Cycle 20%: 0.36 W
  • At Duty Cycle 50%: 0.96 W
  • At Duty Cycle 100%: 7.56 W
• Lead Wire Pin Out:
  • Pin 1: Black (-)
  • Pin 2: Yellow (+)
  • Pin 3: Green (Tachometer/Signal Output)
  • Pin 4: Blue (PWM)
• Dimensions:
  • Fan size: 80 x 80 x 15 mm
  • Overall dimensions: 82.6 x 81 x 28.5 mm
• Weight: 340 g
• RoHS Compliant
