MM12T - Uflex Usa UFlex Power A MM12T Electronic Control Package - Dual Station

UFlex Power A MM12T - Electronic Control Package

- Single Engine/Dual Station - Mechanical Throttle/Mechanical Shift

Power A Mark II™ Electronics Control Systems

• Private Protocol can bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication with electronic engines (SAE J 1939 or NMEA 2000)
• Plug'N Play connectivity
• Automatic engine synchronization
• Dock Assist
• Fully programmable shift delays

MM12T Package Includes:

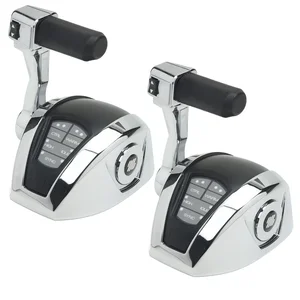

• 42010R - (2) PA2-B1T - Single Lever Control w/Trim
• 42017F - (1) PA2-CU - Control Unit w/LED Diagnostic & Programming Screen
• 42027J - (2) PA2-MA - Electro Mechanical Actuator for Shift and/or Throttle
• 42028L - (1) PA2-NT - Network Terminator
• 42053K - (1) M-P3 - Main Power Supply Cable 9.8'
• 71021K - (2) CAN-10 - Network Connection Cable 33'
• 73639T - (2) CAN-1 - Network Connection Cable 3'
• 42026G - (1) PA2-PU - Power Supply Unit for 12V Systems
• 42056S - (2) M-PE1 - Power Extension Cable 3.3'

The Uflex Power A MM12T Electronic Control Package is designed for marine applications requiring single engine and dual station control. This system facilitates mechanical throttle and mechanical shift operations, providing a robust solution for managing vessel propulsion from two distinct locations. It utilizes a private protocol CAN bus for data transmission, ensuring reliable communication between components. Key features include automatic engine synchronization, which contributes to smoother performance, and Dock Assist for improved maneuverability. The modular design supports straightforward installation and potential future expansions, accommodating up to four control stations. The MM12T package is suitable for IT professionals and procurement managers seeking a reliable electronic control system for marine environments, offering programmable shift delays and direct communication with electronic engines via SAE J1939 or NMEA 2000 protocols. Enhanced diagnostics are provided through an LED display for system monitoring and programming.
