MM11T - Uflex Usa UFlex Power A MM11T Electronic Control Package - Single Station

Power A MM11T Electronic Control Package - Single Engine / Single Station

Features:

• Comes with Trim
• Private Protocol CAN bus for data transmission
• Connection of multiple stations up to 4 controls
• Modular System
• Direct communication with electronic engines (SAE J 1939 or NMEA 2000)
• Plug and Play connectivity
• Automatic engine synchronization
• Dock Assist functionality
• Fully programmable shift delays

MM11T Package Includes:

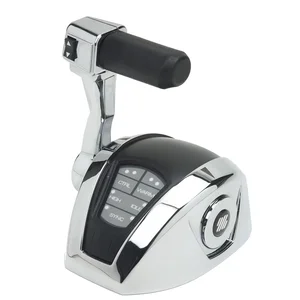

• 42010R - (1) PA2-B1T - Single Lever Control with Trim
• 42017F - (1) PA2-CU - Control Unit with LED Diagnostic & Programming Screen
• 42027J - (2) PA2-MA - Electro Mechanical Actuators for Shift and/or Throttle
• 42028L - (1) PA2-NT - Network Terminator
• 42053K - (1) M-P3 - Main Power Supply Cable 9.8'
• 71021K - (1) CAN-10 - Network Connection Cable 33'
• 73639T - (2) CAN-1 - Network Connection Cable 3'
• 42026G - (1) PA2-PU - Power Supply Unit for 12V Systems
• 42056S - (2) M-PE1 - Power Extension Cable 3.3'

The UFlex Power A MM11T Electronic Control Package is a single-station electronic control system designed for single-engine applications. This package provides precise control over shift and throttle functions, suitable for marine environments requiring reliable engine management. It features a private protocol CAN bus for data transmission, enabling direct communication with electronic engines utilizing SAE J1939 or NMEA 2000 protocols. The modular system supports up to four control stations, offering scalability for different vessel configurations. Key functionalities include automatic engine synchronization, programmable shift delays, and Dock Assist, which aids in low-speed maneuvering. The MM11T package is designed for plug-and-play installation, simplifying setup for IT professionals or technicians integrating marine control systems. This solution addresses the need for a robust, flexible electronic control system in B2B applications where precise engine command and multi-station capability are critical.
