Planar 997-7797-00 LCD 997-7797-00 MX46HDU-L-ERO 46inch 8ms 3500:1 1920x1080 HDMI/DisplayPort Touch Retail

Clarity Matrix Multi-Touch
Interactive LCD Video Walls

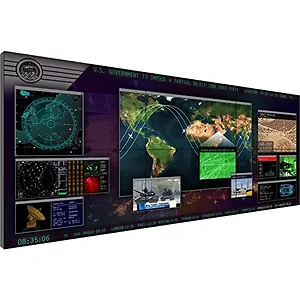

The Clarity Matrix MultiTouch LCD Video Wall is an ultra-slim profile touch screen video wall ideal for public spaces or collaboration environments. Utilizing the latest touch technology, Clarity Matrix MultiTouch enables up to 32 touch points and allows multiple users to simultaneously interact with video wall without affecting other users.

A Multi-Touch, Multi-User Experience

Modular Protective Touch Surface

Other implementations of touch systems for LCD video walls require a large piece of glass in front of the LCD to protect and provide a touchable surface. This glass can be cumbersome for installation, transport and servicing. The modular design of Clarity Matrix MultiTouch with Planar's ERO (Extended Ruggedness and Optics) technology provides a continuous touch surface while ensuring ease of installation and serviceability, less parallax error and superior optical properties.

Configure Your Custom Clarity Matrix Video Wall

The Clarity Matrix Calculator provides a simulated representation of your video wall along with important product specifications specific to your Clarity Matrix video wall design, including dimensions, weight, rack components, power consumption and heat load.

Product Name
MX46HDU-LERO

Technology
Commercial Grade Direct View LCD

Screen Size
46inch (Diagonal)

Aspect Ratio
16:9

Native Resolution Panels
1920x1080

Tiled Bezel Width
3.7mm

Brightness (Typical)
800 nits

Response Time (Typical)
8ms

Contrast Ratio (Typical)
3500:1

Full Viewing Angle (Typical)
178 Degrees

Backlight Life (1/2 Brightness)
50,000 Hours

Mounted Depth
3.7inch Wall to Front of Screen

Acoustic Noise
Fanless Operation

Heat Load
520 BTU Per Hour at 800 Nits

Operating Temperature
5 to 40 Degrees C

Operating Temperature Range
20 to 90% RH (Non-Condensing)

Backlight Control
Individual and Wall Control

Backlight Sensing and Reporting
At Display Level

Power Consumption (Max)
170 Watts (Typical)

Power Supply Voltage
100 to 230V AC +/-10%, 50/60Hz

Power Status
Diagnostics LED
Health Monitoring and Alerts

Safety Regulations
Complies with EN60950, FCC Class A, CISPR22/85, CE, EU RoHS

Data Inputs
4 x HDMI Inputs
1 x DisplayPort Input

Control
IR Remote
RS232
Ethernet (Optional)

Touch Options
Clarity Matrix Multi-Touch Kits: MT6-6 Simultaneous Touch Points: MT32-32 Simultaneous Touch Points

Power for Touch System
100 to 240V AC 50/60Hz

OS Compatibility
Windows 8
Windows XP
Mac OS X
Android (Limited to iStick)
Linux

Item Dimension (L"xW"xH")
40.27 x 22.8 x 3.7

Weight
162.00 lb

Warranty Information
3 Years
