2 Available / 14 Sold
Condition: New

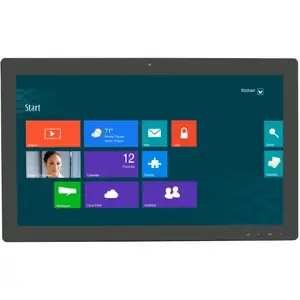

The PLANAR HELIUM PCT2785 is a 27-inch multi-touch monitor designed for business and IT environments requiring interactive display capabilities. This edge-lit LED LCD features projected capacitive touch technology, providing a responsive interface for applications on Windows 7 and 8. With a 16:9 aspect ratio and a 5000:1 typical contrast ratio, it delivers a clear visual experience across a 178-degree horizontal and vertical viewing angle. Connectivity options include HDMI, DisplayPort, and Analog inputs, along with a built-in USB hub (2x USB-A) for peripheral integration. The monitor also incorporates an integrated Full HD webcam with a microphone and a 3W speaker, making it suitable for collaborative workspaces or video conferencing. Its tilt range from +15 to +70 degrees, including a flat mode, allows for ergonomic adjustments. The 997-6848-00 model is VESA 100mm compatible for flexible mounting and operates without requiring drivers for basic touchscreen functions.
Product Name
PCT2785 Viewable Size
27" diagonal (23.54" horizontal x 13.24" vertical) Touchscreen Type
USB Contrast Ratio (Typical)
5000:1 Viewing Angle (Typical)
178 H,V Response Time
12 ms Brightness (with Touch screen)
264 cd/m Brightness (without Touch screen)
300 cd/m Display Type
Edge-Lit LED LCD Aspect Ratio
16:9 Tilt Range
+15 to +70 and flat Palette
16.7 Million Colors Video Inputs
Analog
HDMI
Display Port Audio Output
3W Speaker, Earphone Compatibility
Windows 7, 8
HID Compliant
No Drivers Needed for Basic Touchscreen Operation Power Supply
Internal Power Requirements
100 to 240 VAC, 50/60Hz Power Consumption
43 Watts (Typical)
<0.5 Watts Standby and off Modes VESA Compatible/Location
Built in 100mm VESA, Back of Monitor Options/Features
Integrated Full HD Webcam with Microphone
Built in USB Hub USB-A x 2
This monitor is compatible with Windows 7 and Windows 8. It is HID compliant, and no drivers are needed for basic touchscreen operation.
The monitor includes Analog, HDMI, and DisplayPort video inputs, offering flexibility for connecting to various systems.
Yes, it features an integrated Full HD webcam with a microphone and a built-in 3W speaker, along with an earphone compatibility option.
The typical power consumption for this monitor is 43 Watts. In standby and off modes, it consumes less than 0.5 Watts.
997-6848-00 - Planar HELIUM 27INCH WIDE BLACK PROJECTED CAPACITIVE MULTI-TOUCH EDGE-LIT LED LCD, US
