66 Available / 233 Sold
Condition: New
LED monitor - 22" (21.5" viewable) - touchscreen - 1920 x 1080 Full HD (1080p) - 250 cd/m² - 1000:1 - 14 ms - HDMI VGA DisplayPort - speakers - with 3-Years Warranty Planar Customer First

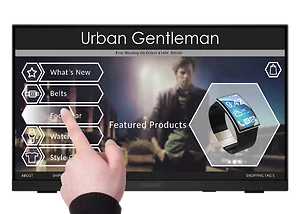

The PLANAR PCT2235 is a 21.5-inch Full HD (1920x1080) LED-backlit touchscreen monitor designed for business and IT environments. It features projective capacitive multi-touch technology, interfacing via USB, and is compatible with Microsoft Windows 7, 8, and 10. With a 14 ms response time and 60Hz maximum vertical frequency, it is suitable for applications requiring direct user interaction. Connectivity options include HDMI, VGA, and DisplayPort, alongside integrated 2x2W speakers. The monitor offers a tilt range of 15 to 70 degrees, allowing for ergonomic adjustments in various setups. Power consumption ranges from 13.4W in ECO Mode 3 to 27W typical during normal operation. This monitor, part number 997-8286-00, is intended for organizations seeking a reliable touch-enabled display solution, backed by a 3-year Planar Customer First warranty.
Panel
21.5 TFT (with LED Backlight) Power Management
Normal: On 27W (Typical), 35W Maximum
ECO Mode 1: On 22.2W (typical)
ECO Mode 2: On 18.5W (Typical)
ECO Mode 3: On 13.4W (Typical)
Standby Mode: <0.5W / Off: <0.5W Displayable Resolution
Full HD 1920x1080 Max Vertical Frequency 60Hz Max Pixel Dimensions
0.24825 x 0.24825mm Display Color
16.7M Tilt
15 to 70 Degrees Active Display Area
476.64mm x 268.11mm Temperature
Operating: 0 C to +40 C
Storage: -20 C to +60 C Compliance
FCC-B, CE, UL/cUL Power
Input Voltage AC100-240V Amplifier
2x2W Touch Technology
Multi-Touch Projective Capacitive (USB Interface) Accuracy
Comply to WIN 10 Logo Requirement Glass Coating
Non-Coating OS
Microsoft Windows 7, 8, 10 Weight
7.90 lb
Warranty Information
3 Years Customer First 2-Day Advance Replacement Warranty for Three Full Years
The multi-touch projective capacitive technology is compatible with Microsoft Windows 7, 8, and 10. It is designed to comply with the WIN 10 Logo Requirement for accuracy.
The monitor provides HDMI, VGA, and DisplayPort inputs for video connectivity. This allows for integration with various system configurations.
The product includes the 21.5-inch LED monitor with touchscreen capabilities and integrated speakers. It also comes with a 3-year Planar Customer First 2-Day Advance Replacement Warranty.
Typical power consumption is 27W during normal operation. The monitor also features ECO modes, reducing consumption to as low as 13.4W in ECO Mode 3.
997-8286-00 - Planar PCT2235 - LCD MONITOR - FLAT - 1920 X 1080 - 21.5INCH - 14MS RESPONSE TIME - 60
