K199 - Dynatron Copper Heatsink K199 For Intel Xeon 3400 | Aztek Computers
29+Years
SKU: AR7NPKW8PG |  Mfg. Part: K199  | UPC: 855700010022  |  0 Reviews  |     Share

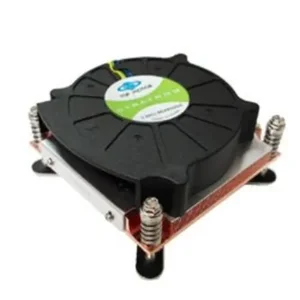

K199 - Dynatron Copper Heatsink K199 For Intel Xeon 3400 LGA1155/LGA1156 Lynnfield with Fan Retail

6 Available
Condition: New

$72.51  $97.89
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

Fan InformationNumber of Fans: 1Fan Speed (rpm): 1 x 5000 rpmFan Bearing Type: Dual Ball BearingAir Flow: 1 x 14.7 CFMHeatsink InformationFins/Pins Style: Skive FinMount Type: Screw MountCompatible Processor Socket: Socket H2 LGA-1155, Socket H LGA-1156Interfaces/PortsConnectors: 4-pin PWMPower DescriptionInput Voltage: 12 V DCPhysical CharacteristicsMaterial: Copper HeatsinkForm Factor: InternalFan Diameter: 1 x 80 mmHeight: 1.1"Width: 3.2"Depth: 3.3"Weight (Approximate): 12.52 ozMiscellaneousCompatibility: Socket LGA 1155 Intel Processors:i7-2600i5-250012201220L122512301235124012451260L127012751280Application/Usage: ProcessorEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 1 Year

Expert Overview

The Dynatron Copper Heatsink K199 is an internal cooling solution designed for Intel Xeon 3400 series and select Core i5/i7 processors utilizing LGA1155 and LGA1156 sockets. This unit features a copper skive fin heatsink and an 80mm dual ball bearing fan, engineered for 1U server environments. It provides active cooling to maintain optimal processor temperatures, which is critical for system stability and longevity in continuous operation. The fan operates at speeds up to 5000 RPM, delivering an airflow of 14.7 CFM, and connects via a 4-pin PWM interface for controlled performance. This cooling solution is suitable for IT professionals and system integrators building or maintaining servers and workstations requiring reliable thermal management for compatible Intel CPUs.

Technical Specifications

CPU Socket : 1155 and 1156 CPU Support : Intel Core i5 I5-750 Xeon Processor 3400 Series Core i7 Processors, I7-870 and I7-860 Solution : 1U Server Overall Dimension : 85.0 x 81.5 x 28.5mm Weight : 355g +/- 5g Material : Copper Heatsink Fan Dimension : 80 x 80 x 15 mm Speed : At Duty Cycle 0-20%: 1000 RPM, At Duty Cycle 50%: 2500 RPM, At Duty Cycle 100%: 5000 RPM Bearing : 2 Ball Bearing Rated Voltage : 12 Power : At Duty Cycle 0-20%: 0.60 W, At Duty Cycle 50%: 1.44 W, At Duty Cycle 100%: 9.60 W Air Flow : At Duty Cycle 0-20%: 5.355 CFM, At Duty Cycle 50%: 7.654CFM, At Duty Cycle 100%: 14.719 CFM Noise Level : At Duty Cycle 0-20%: 20.71 dBA, At Duty Cycle 50%: 37.5 dBA, At Duty Cycle 100%: 51.7 dBA Air Pressure : At Duty Cycle 0-20%: 2.083 mm-H2O, At Duty Cycle 50%: 9.780 mm-H2O, At Duty Cycle 100%: 36.168 mm-H2O Lead Wire Pin Out : Pin1-Black (-), Pin2-Yellow (+), Pin3-Green (Techometer/Signal output), Pin4-Blue (PWM) Warranty : 1 Year

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • Dynatron
  • K199
  • B005OYEU7G
  • 855700010022
  • New
  • 1 lbs
  • 6 X 5 X 5
  • Sep 10, 2026
  • Jan 06, 2010
Product Identifiers: Brand: Dynatron • Part #: K199 • UPC: 855700010022 • ASIN: B005OYEU7G • Category: Other Computer Fans & Cooling

Frequently Asked Questions

What processor sockets are compatible with this heatsink?

This heatsink is compatible with Socket H2 LGA-1155 and Socket H LGA-1156. It supports Intel Xeon Processor 3400 Series, Intel Core i5 I5-750, and Intel Core i7 Processors, I7-870 and I7-860.

What is included with the Dynatron K199?

The Dynatron K199 includes a copper heatsink with a skive fin design and one 80mm fan. It is designed for screw mount installation.

What is the intended application for this cooling solution?

This cooling solution is designed for processor cooling in 1U server applications. It helps manage heat generated by compatible Intel CPUs to ensure stable system operation.

What are the dimensions and material of the heatsink?

The heatsink has overall dimensions of 85.0 x 81.5 x 28.5mm (Width x Depth x Height). It is constructed from copper, contributing to its thermal conductivity.
