JU-P40811-S1 - Siig PER-PORT POWER CONTROL FEATURES FOUR | Aztek Computers
29+Years
SKU: UIPMXDWO9L |  Mfg. Part: JU-P40811-S1  | UPC: 662774042640  |  0 Reviews  |     Share

JU-P40811-S1 - Siig PER-PORT POWER CONTROL FEATURES FOUR INDEPENDENT SUPERSPEED USB 3.0 TYPE-A PORTS

1 Available
Condition: New

$68.82  $92.91
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

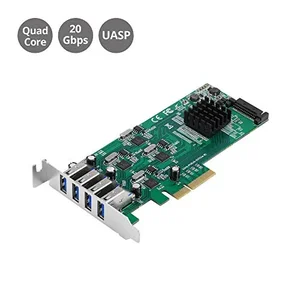

4Port USB 3.0 PCIe Quad Core. Adds four independent external SuperSpeed USB 3.0 5Gbps Type-A ports to your PCI Express (PCIe) enabled desktop computer.

Expert Overview

The Siig JU-P40811-S1 is a 4-Port SuperSpeed USB 3.0 PCIe Card designed to expand connectivity in desktop computers. This card adds four independent external USB 3.0 Type-A ports, each capable of 5Gbps data transfer, to a PCI Express (PCIe) enabled system. It is suitable for IT professionals or businesses requiring additional high-speed USB ports for peripherals, data transfer, or specialized equipment. Each port provides up to 900mA power output and operates independently, ensuring dedicated bandwidth. The card utilizes a Renesas uPD720202 chipset and connects via a PCI Express x4 bus connector (PCIe 2.0 version). It addresses the need for increased USB 3.0 port availability and performance, particularly in systems where integrated ports are insufficient or slower. A SATA power connection is required for operation, and it supports various Windows client and server operating systems.

Technical Specifications

Chipset: Renesas uPD720202
Compliant with USB 3.0 Specification
Bus connector: PCI Express 4x
Version: PCI Express 2.0
USB data transfer rate: Up to 5Gbps for each port
Total USB bandwidth: 20Gbps
USB power output: Up to 900mA for each port
Product
Color: Green
Connectors
4x 9-pin USB 3.0 Type A, Female
1x 15-pin SATA power connector
Note: SATA power connector required
Environmental conditions
Operating temperature: 32 to 140 degrees F
Storage temperature: 14 to 158 degrees F
Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards
FCC, CE, RoHS
Requirements
Low profile desktop PC with one available PCI Express (PCIe) x4 slot
SATA power connection is required
Windows 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
Windows Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package Contents
4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
Driver CD
Quick Start Guide
Item Dimension ( L inchxW inchxH inch)
6 x 1 x 4 Weight
1.0 lb Warranty Information
2 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • JU-P40811-S1
  • B07R63J6FS
  • 662774042640
  • New
  • 0.22 lbs
  • 3 X 6 X 1
  • Aug 23, 2026
  • Jun 21, 2019
  • Yes
  • CN
Product Identifiers: Brand: Siig • Part #: JU-P40811-S1 • UPC: 662774042640 • ASIN: B07R63J6FS • Category: Networking • TAA Compliant

Frequently Asked Questions

What type of PCI Express slot is required for this card?

This card requires an available PCI Express (PCIe) x4 slot for installation. It is compliant with PCI Express 2.0.

What operating systems are supported by this USB 3.0 PCIe card?

The card supports Windows 10, 8.x, and 7 (both 32- and 64-bit versions). It also supports Windows Server 2019, 2016, 2012 R2, 2012, 2008 R2, and 2008.

Is an external power connection necessary for this card?

Yes, a 15-pin SATA power connector is required to provide power to the card and its USB ports.

What is the maximum data transfer rate for each USB port?

Each of the four independent USB 3.0 Type-A ports supports a data transfer rate of up to 5Gbps. The total USB bandwidth for the card is 20Gbps.
