Technical Specifications
Wireless Technology:
5GHz
Compliant with HDMI 1.3 and HDCP 1.2
Resolution:
480p / 720p / 1080i / 1080p at 60Hz
Transmission distance:
Up to 98ft (30m) line of sight
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
HDMI cable length:
Up to 5 meters
Audio:
2-Ch PCM stereo audio
Housing material:
TX: Plastic / RX: Metal
Housing color:
Black
Product:

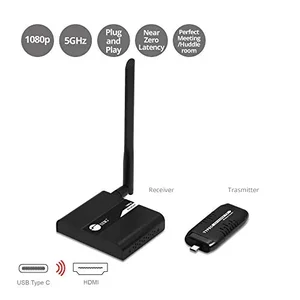

Transmitting unit (TX):
Connectors:
1x USB Type-C, Male, Input
Receiving unit (RX):
Connectors:
1x 19-pin HDMI, Type A, Female, Output
1x Antenna
1x Power jack
Power adapter:
Input: 100-240V / 50-60Hz
Output: DC 5V/2A
UL Listed: E335801 / Class VI
Environmental conditions:
Operating temperature: 32 to 122 degrees F
Storage temperature: 14 to 140 degrees F
Relative humidity: 0% to 90% RH (non-condensing)
Certifications/Standards:
FCC, CE, RoHS
Item Dimension (L"x W"x H")
4 x 1 x 2
Weight
1.00 LB
Warranty Information
2 years
