JU-EX0311-S1 - Siig STANDARD CAT CABLE EXTENDS USB 2.0 DEVICE CONNECTIONS UP TO 264 FEET (80 METERS)

13 Available / 1 Sold
Condition: New

$161.42  $217.92
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

264 FEET 80 METERS OVER SINGLE CAT6

Expert Overview

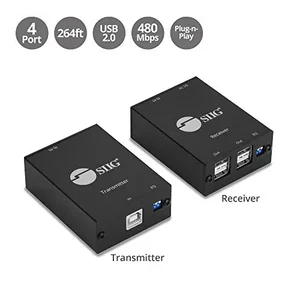

The Siig JU-EX0311-S1 is a USB 2.0 extender designed to transmit USB device connections over a single Cat6 cable up to 264 feet (80 meters). This solution is suitable for IT environments requiring extended USB connectivity beyond standard cable limitations, such as connecting peripherals in conference rooms, industrial settings, or control rooms where the host computer is located remotely. It supports USB 2.0 data transfer rates up to 480Mbps and includes features like a DIP switch for cable skew adjustment and an integrated equalizer to compensate for varying cable types. The system comprises a transmitting unit (TX) with a USB Type-B input and an RJ45 output, and a receiving unit (RX) with an RJ45 input and four USB Type-A outputs. Both units feature metal housing and LED indicators for power and activity. ESD protection is integrated, and the device is TAA compliant, making it suitable for government and enterprise procurement.

Technical Specifications

Compliant with USB 2.0 specification
Supports USB 2.0 data transfer rate up to 480Mbps
DIP switch adjusts the cable skew for different length Cat6 cable
Integrated equalizer compensates for different cable types
Power LED indicators
ESD protection:
Air: +/-19kV
Contact: +/-12kV
Transmitting unit (TX):
Color: Black
Housing: Metal
Connector:
1x 4-pin, USB Type-B, Female, Input
1x 8P8C with 2 LED indicators, RJ45, Female, Output
1x 2-pin DIP switch for cable equalization
Receiving unit (RX):
Color: Black
Housing: Metal
Connector:
1x 8P8C with 2 LED indicators, RJ45, Female, Input
4x 4-pin, USB Type-A, Female, Output
1x 2-pin DIP Switch for cable equalization
1x Power jack, power input
Power Adapter:
Input: 100-240VAC, 50/60Hz
Output: DC 5V/2A
UL listed: E135856 / Level: VI
Environmental conditions:
Operating temperature: 32 to 104 degrees F
Storage temperature: -4 to 140 degrees F
Relative humidity: 20 to 90% RH (non-condensing)
TAA compliant
Certifications/Standards: FCC, CE, RoHS
Item Dimension (L"xW"xH")
3 x 1 x 3
Weight
1.00 LB
Warranty Information
3 years

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • TAA Compliant:
  • Country of Origin:
  • Siig
  • JU-EX0311-S1
  • B07N17NLL2
  • 662774042374
  • New
  • 2 lbs
  • 8 X 7 X 5
  • Aug 13, 2026
  • May 22, 2019
  • Yes
  • TW
Product Identifiers: Brand: Siig • Part #: JU-EX0311-S1 • UPC: 662774042374 • ASIN: B07N17NLL2 • Category: Consumer Electronics • TAA Compliant

Frequently Asked Questions

What is the maximum extension distance for this USB extender?

This USB extender can extend USB 2.0 device connections up to 264 feet (80 meters) over a single Cat6 cable.

What is included with the Siig JU-EX0311-S1?

The product includes a transmitting unit (TX), a receiving unit (RX), and a UL-listed DC 5V/2A power adapter. Cat6 cable is not included.

What USB devices are compatible with this extender?

The extender is compliant with the USB 2.0 specification and supports USB 2.0 data transfer rates up to 480Mbps. It features four USB Type-A outputs on the receiving unit for connecting standard USB 2.0 devices.

Does this product offer any protection features?

Yes, the extender includes ESD protection with ratings of +/-19kV for air discharge and +/-12kV for contact discharge, helping to safeguard connected devices and the unit itself.
