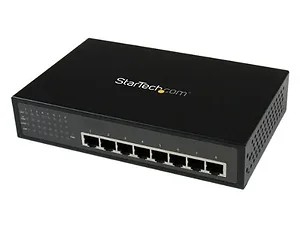

Product Overview
Features8 PoE / PSE(Power Data), 10/100/1000Mbps compliant portsFully compliant with IEEE 802.3at / 802.3afSupports up to 52V, 30 Watts max output per portSupports Over Current and Circuit Shorting protectionWall-MountableUses existing / standard Cat5 or better cabling- SKU: DHIES81000POE
Technical Specifications
Hardware
Industry Standards:
IEEE 802.3at/af Power Over Ethernet, IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-TX, IEEE 802.3x Flow Control
Ports:8 Connector(s)
Connector Type(s):8 - RJ-45 Female
Performance
Auto MDIX:Yes
Buffer Size:128 KB
Compatible Networks:10/100/1000 Mbps
Flow Control:Half-duplex back-pressure and IEEE802.3x full-duplex
Full Duplex Support:Yes
Maximum Data Transfer Rate:2 Gbps (Full-Duplex)
Switching Architecture:Store-and-Forward Color
Black
Enclosure Type
Steel
Indicators
LED Indicators:
1 - Power
8 - Activity
8 - 10/100 Mbps
8 - 1000 Mbps
8 - PoE Power
Center Tip Polarity:Positive
Input Current:2 A
Input Voltage:110 - 240 AC
Output Current:2.31 A
Output Voltage:52 DC
Power Adapter Included:Yes
Power Consumption:120 W Max Included in Package
1 - 8 Port Gigabit PoE Switch
2 - Wallmount Brackets
1 - Set, Rubber Feet
1 - Universal Power Adapter (NA/UK/EU)
1 - Instruction Manual Item Dimension (L"xW"xH"):
14.37 x 7.28 x 2.56
Weight:
3.86 lb
Warranty Information:
2 Year Warranty
