Condition: New

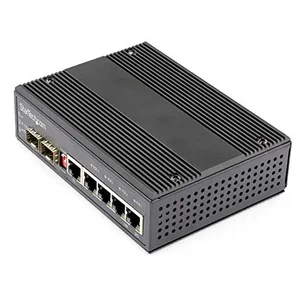

The StarTech.com IES1G52UP12V is an industrial 6-port Gigabit Ethernet switch designed for network deployment in challenging environments. It features four dedicated PoE+ RJ45 ports, providing up to 30W per port with a total power budget of 120W, suitable for powering devices such as cameras, sensors, and Wi-Fi access points. Additionally, it includes one dedicated open SFP slot and a switchable RJ-45/Open SFP port, allowing for flexible uplink or non-PoE device connections, supporting a total of six device connections. This switch is built with an IP-30 rated housing and an operating temperature range of -40C to 75C, making it resistant to vibration, shock, and free-fall. Its flexible power input accepts 12VDC to 56VDC, ideal for applications where traditional power sources are unavailable, such as transportation or solar setups. Dual power inputs provide redundancy for high-availability applications, ensuring continuous operation.
Easily deploy or scale your network with this Gigabit Ethernet switch, features four dedicated PoE+ enabled ports, and one dedicated open SFP slot plus the flexibility of a switchable RJ-45/Open SFP port for use as an uplink or for non-PoE devices. It features an IP-30 housing, compact design, and is wall and DIN rail mountable.
Power Over Ethernet & Low VoltageIdeal for powering PoE devices in situations where a traditional power source is not available; it accepts power as low as 12VDC for applications such as transportation (auto/bus/rail) and solar. PoE output is boosted to PoE/PoE+ standards (IEEE 802.3af/at, 55V) in applications where non-standard 12V (or higher) power sources are available.
With a total power budget of 120W, this PSE Ethernet switch provides up to 30W of power per PoE port to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:
Uses Cat 5e (or higher rated) Ethernet cabling.
Flexible Power Input & Low VoltagePower input flexibility between 12/24/48/56V DC and low voltage DC inputs reduces the complexities of installation by avoiding additional in-line devices to boost power before it reaches the switch.
This unique switch allows for 5x RJ-45 ports (4x PoE) to be active + 1 SFP, or 4 x RJ-45 (all PoE) + 2 SFP, for 6 device connections total.
Designed for Harsh EnvironmentsIndustrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
Includes an exterior aluminum heat sink for superior passive cooling; 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability.
Dual Power InputsDual power inputs provide redundancy. Accepts dual terminal block power, allowing the product to be hardwired from multiple power sources for high availabilty applications.
The IES1G52UP12V is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The PoE+ ports support IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PDs), including cameras, sensors, and Wi-Fi access points.
This industrial switch is designed to operate in extreme conditions, with a temperature range from -40 degrees Celsius to 75 degrees Celsius.
Yes, the switch accepts flexible power input between 12VDC and 56VDC, making it suitable for applications like transportation or solar power where low voltage DC sources are common.
The switch has a total Power over Ethernet (PoE) budget of 120W, allowing it to deliver up to 30W of power per individual PoE port.
IES1G52UP12V - Startech INDUSTRIAL 5 PORT GIGABIT ETHERNET SWITCH - UP TO 30W PER 4 POE PORTS - 75C TO -
