31 Available
Condition: New

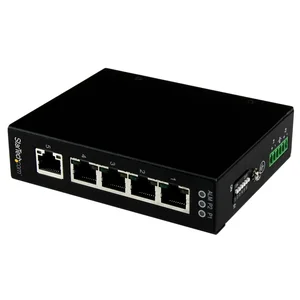

The StarTech.com IES51000 is a 5-port unmanaged industrial Gigabit Ethernet switch designed for connecting up to five Ethernet devices in demanding environments. It is suitable for IT and operations professionals who need reliable network connectivity in locations such as factory floors, warehouses, or large junction boxes. The switch features a compact, IP30-rated metal enclosure and supports an extended operating temperature range of -40°C to 75°C, ensuring performance in harsh conditions. It offers 10/100/1000 Mbps transfer speeds with auto-negotiation and auto MDI/MDIX, simplifying device integration without extensive configuration. For continuous operation, the IES51000 includes redundant 12-58V DC terminal block power inputs and supports alarm relay contacts for power disruption notifications. Installation flexibility is provided through DIN rail or wall-mounting options, addressing common deployment challenges in industrial settings.
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | IES51000 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 5 |
| Token Ring Port | No |
| LRE Port | No |
| Uplink Port | No |
| Bypass | No |
| Modular | No |
| Management Port | No |
| USB | No |
| Stack Port | No |
| Number of Network (RJ-45) Ports | 5 |
| Network (RJ-45) | Yes |
| Port/Expansion Slot Details | 5 x Gigabit Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| PoE (RJ-45) Port | No |
| Power Source | AC Adapter |
| Power Consumption | 62 W |
| Physical Characteristics | |
| Product Material | Steel |
| Height | 1.1" |
| Width | 3.5" |
| Depth | 4.4" |
| Weight (Approximate) | 11.60 oz |
| Miscellaneous | Package Contents: |
| IEEE Standards | 802.3 |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
The IES51000 5-Port Industrial Ethernet Switch offers 5 Gigabit Ethernet ports in a compact, IP30-rated metal enclosure, making it the ideal network solution for harsh industrial environments such as factory floors, warehouses or large junction boxes.
Quickly connect your network devices with little to no configuration. This unmanaged industrial network switch supports 10/100/1000 Mbps transfer speeds, full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX, which helps to eliminate the hassle of troubleshooting mis-matched speed and duplex settings.
Providing seamless operation in the event of power dips or failures, the switch features redundant 12-58V DC terminal block power inputs to help prevent unnecessary downtime. When used with two power sources, the switch also supports alarm relay contacts that you can wire to your existing alarm circuit to notify you instantly when a power disruption occurs.
