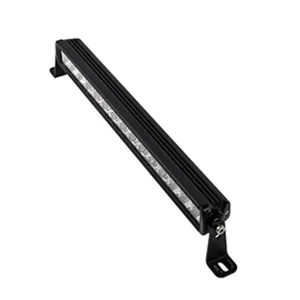

HE-SL2014 - Heise Led Lighting Systems HEISE Single Row Slimline LED Light Bar - 20-1/4"

Single Row Slimline LED Light Bar - 20-1/4"

SPECS

• Input Voltage: 10–30V DC
• Wattage: 45W (15–3W OSRAM LEDs)
• Raw Lumens: 3600
• LUX @ 10M: 1280
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood(90°)/Spot(8°)

CONSTRUCTION

• Housing Material: Powder Coated Aluminum
• Housing Color: Black
• Membrane: Gore™
• Lens Material: PC
• Mounting Bracket: Die–cast Aluminum
• Mounting: Side and Bottom
• Hole Dimensions:

• Brackets turned inward – 20"
• Brackets turned outward – 22"
• Mounting Bolt Drill – .25"

• Height of Light Bar Itself: 2"
• Depth of Light Bar Itself: 2"
• Electronics: Integrated–Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: –40°C to +60°C
• Current Consumption: 2.4 amps @ 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE Single Row Slimline LED Light Bar (part number HE-SL2014) is a 20-1/4" lighting solution designed for applications requiring robust and versatile illumination. It operates on a 10-30V DC input, delivering 45W through 15 OSRAM LEDs to produce 3600 raw lumens. The light bar features a combo beam pattern, incorporating both 90-degree flood and 8-degree spot illumination, with a 6000K color temperature. Its construction includes a black powder-coated aluminum housing, a Gore� membrane, and a PC lens, ensuring durability in various environments. Mounting options are available via side and bottom die-cast aluminum brackets, with flexible hole dimensions for installation. Integrated-epoxy encapsulated electronics and stainless 316 hardware contribute to its operational reliability in temperatures ranging from -40�C to +60�C, making it suitable for demanding industrial or vehicle-based IT setups where reliable auxiliary lighting is critical.
