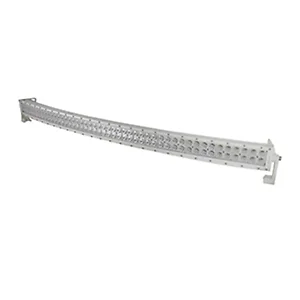

HE-MDRC42 - Heise Led Lighting Systems HEISE Dual Row Marine Curved LED Light Bar - 42"

Dual Row Marine Curved LED Light Bar - 42"

Specs

• Input Voltage: 10-30V DC
• Wattage: 240 W
• (80-3W CREE LEDs)
• Raw Lumens: 19200
• LUX at 10M: 780
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 41 inches
• Brackets Turned Outward – 43.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 12 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE Dual Row Marine Curved LED Light Bar (HE-MDRC42) is a 42-inch lighting solution designed for marine environments. It operates on 10-30V DC input voltage, delivering 240W of power through 80 3W CREE LEDs. This unit provides 19200 raw lumens with a 6000K color temperature, utilizing a combo beam pattern that includes a 90-degree flood and an 8-degree spot. Its construction features a die-cast aluminum housing with a white coating and UV inhibitors, a Gore� membrane, and a PC lens. The light bar is epoxy-encapsulated for electronics protection and uses stainless 316 hardware. It is suitable for applications requiring durable, high-output illumination in challenging conditions, offering an IP67 rating and reverse polarity protection. This product is intended for integrators and businesses needing reliable marine-grade lighting.
