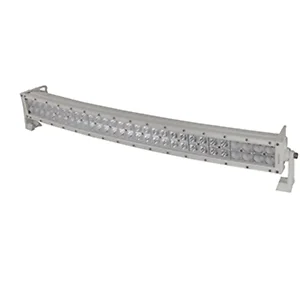

HE-MDRC30 - Heise Led Lighting Systems HEISE Dual Row Marine LED Curved Light Bar - 30

Dual Row Marine LED Curved Light Bar - 30"

Specs

• Input Voltage: 10-30V DC
• Wattage: 180 W
• (60-3W CREE LEDs)
• Raw Lumens: 14400
• LUX at 10M: 625
• Color Temperature: 6000K
• Beam Pattern: Combo/Flood 90 degrees/Spot 8 degrees

Construction

• Housing Material: Die-Cast Aluminum Housing
• Housing Color: White Coating with UV Inhibitors
• Membrane: Gore®
• Lens Material: PC
• Mounting Bracket: Die-Cast Aluminum
• Hole Dimensions:

• Brackets Turned Inward – 31 inches
• Brackets Turned Outward – 33.5 inches
• Mounting Bolt Drill – 25 inches

• Height of Light Bar Itself: 3 inches
• Depth of Light Bar Itself: 3.5 inches
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

Operation

• Operating Temperature: – 40 degrees C to +60 degrees C
• Current Consumption: 9.5 Amps at 13.8 Volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The HEISE LED Lighting Systems HE-MDRC30 is a 30-inch dual-row marine LED curved light bar designed for applications requiring robust and reliable illumination in demanding environments. This unit is suitable for IT and operations managers overseeing marine fleets, industrial vessels, or any outdoor infrastructure where durable, high-output lighting is critical. It addresses the need for effective visibility and operational safety in conditions ranging from -40�C to +60�C.

Featuring 60 CREE LEDs, the light bar delivers 14400 raw lumens with a 6000K color temperature. Its combo beam pattern integrates a 90-degree flood and an 8-degree spot, providing both wide-area and focused illumination. Construction includes a die-cast aluminum housing with a white UV-inhibiting coating, a Gore� membrane, and a PC lens, ensuring resistance to environmental factors. Integrated epoxy-encapsulated electronics and IP67 rating contribute to its operational longevity and protection against water and dust ingress.
