HE-DL1 - Heise Led Lighting Systems HEISE 6 LED Single Row Driving Light

6 LED Single Row Driving Light

SPECS

• Input Voltage: 10-30V DC
• Wattage: 18W (6-3W OSRAM LEDs)
• Raw Lumens: 1440
• Color Temperature: 6000K
• Beam Pattern: 25deg Spot

CONSTRUCTION

• Housing Material: Die-cast Aluminum Housing
• Housing Color: Black
• Lens Material: PC
• Mounting Bracket: Black Powder Coated Steel
• Hole Dimensions: Mounting Bolt Drill – .25in
• Electronics: Integrated-Epoxy Encapsulated
• Hardware: Stainless 316

OPERATION

• Operating Temperature: -40degC to +60degC
• Current Consumption: .9 amps at 13.8 volts
• IP Rating: IP67
• Protections: Reverse Polarity

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

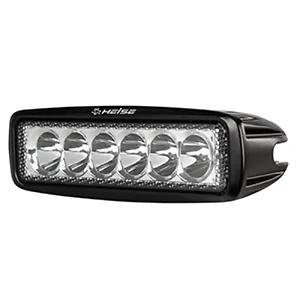

The HEISE 6 LED Single Row Driving Light (part number HE-DL1) is a compact, durable lighting solution designed for applications requiring focused illumination in demanding environments. This unit features six 3W OSRAM LEDs, delivering 1440 raw lumens with a 6000K color temperature and a 25-degree spot beam pattern. It operates on a 10-30V DC input voltage, drawing 0.9 amps at 13.8 volts.

Constructed with a die-cast aluminum housing, PC lens, and black powder-coated steel mounting bracket, it is built to withstand harsh conditions. Integrated-epoxy encapsulated electronics and an IP67 rating ensure protection against dust and water ingress, while reverse polarity protection enhances operational reliability. This driving light is suitable for businesses and IT operations that require robust auxiliary lighting for fleet vehicles, utility equipment, or remote site installations where consistent performance in varying temperatures (-40�C to +60�C) is critical.
