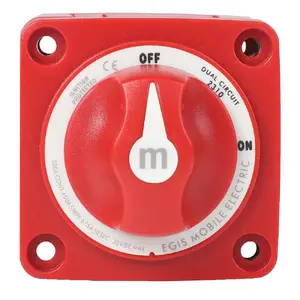

Egis 300A Waterproof Battery Switch
This high-performance battery switch is designed for dual circuits, ensuring reliable operation even in harsh environments. Its sealed design provides protection against dust and water, making it ideal for marine and automotive applications.
Equipped with ignition protection, this switch is safe for installation in closed compartments where explosive gases may be present. The serrated flange lock nuts enhance resistance to loosening in high-vibration conditions.
With flexible mounting options, the Egis battery switch can accommodate various installation types, making it versatile for any project. Built with stainless steel hardware and high-temperature materials, it's engineered to withstand demanding conditions.
Specifications:
The Egis M-Series 300A Dual Circuit Battery Switch, part number 2310, is engineered for managing power in dual-circuit systems. This switch is suitable for IT environments requiring robust power isolation, particularly in mobile or outdoor enclosures where equipment may be exposed to environmental factors. Its sealed design offers protection against dust and water, making it appropriate for applications in marine or automotive settings, which often share environmental challenges with certain IT infrastructure deployments. Ignition protection allows for safe installation in enclosed compartments where explosive gases might be a concern. The switch features serrated flange lock nuts to resist loosening in high-vibration conditions and is constructed with stainless steel hardware and high-temperature materials for durability. It supports flexible mounting options and is designed to handle a maximum voltage of 32 Vdc for dual circuits.
This battery switch is designed for dual-circuit power management. Its waterproof and dust-resistant features, along with ignition protection, make it suitable for marine and automotive applications, as well as other environments where exposure to harsh conditions or enclosed compartments with potential explosive gases is a factor.
For a single circuit, the maximum voltage is 48 Vdc. When operating in a selector or dual circuit configuration, the maximum voltage is 32 Vdc.
The Egis M-Series switch offers versatile mounting configurations. It can be mounted via bulkhead or panel, requiring a mounting hole size of 2-5/8" or 2-5/16" respectively, and uses #10 screws for attachment.
To meet the rating, a 4/0 AWG cable size is recommended. The terminal studs are 3/8"-16 and accept 3/8" (M10) ring terminals, with a recommended torque of 120 in-lbs (13.6 N-m).
2310 - Egis Mobile Electric Egis M-Series 300A Dual Circuit Battery Switch Off/On
