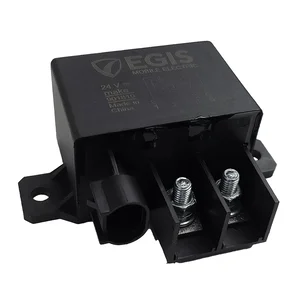

901819 - Egis Mobile Electric Egis 24V 150A Relay with Resistor for Automotive Use

24V Automotive Relay, 150A with Resistor

This durable 24V relay is designed for automotive applications and serves as an industry-standard drop-in replacement for Tyco/Amp models. It efficiently manages high-amp electrical currents in environments that experience extreme temperatures and moisture.

Applications:

• Protects resistor circuits by preventing flyback voltage from interfering with sensitive control signals, ideal for delicate electrical systems.
• High intermittent amp capacity of 300 amps for short bursts (up to 3 seconds), making it suitable for temporary high-start-up current demands.
• Sealed automotive-grade connectors enhance moisture and dust protection for control circuitry.
• Rated for high temperatures up to 125C/257F, suitable for installation in engine bays and low-ventilation environments.

Specifications:

• Intermittent Current (3 seconds): 300 Amps
• Temperature Rating (Low/High): -40°C to 125°C
• Max Continuous Current: 180 Amps at 23°C
• Electrical Endurance: 1,000,000 cycles
• On State Current Draw at 24 VDC: 163 mA
• Operating Voltage: 17.6-32 VDC

WARNING: This product can expose you to chemicals known to the State of California to cause cancer and reproductive harm. For more information visit P65Warnings.ca.gov.

The Egis 24V 150A Relay with Resistor, part number 901819, is an automotive-grade overload protection relay engineered for managing high-amp electrical currents in demanding environments. This 24V relay is designed to function as a direct replacement for Tyco/Amp models. It integrates a resistor to protect sensitive control signals by preventing flyback voltage, making it suitable for delicate electrical systems. The unit offers a continuous current rating of 180 Amps at 23�C and an intermittent capacity of 300 Amps for up to 3 seconds, addressing temporary high-start-up current demands. With a temperature rating from -40�C to 125�C and sealed automotive-grade connectors, it is suitable for installation in engine bays and other environments exposed to moisture, dust, and high temperatures. Its robust construction includes IP54 ingress protection and enhanced shock and vibration protection, contributing to a long service life in B2B automotive applications.
