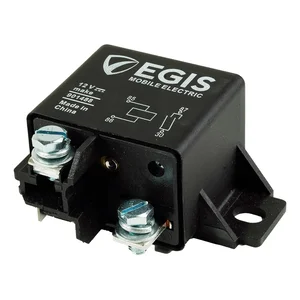

901488 - Egis Mobile Electric Egis 12V 75A High-Performance Automotive Relay

High-Performance Automotive Relay - 12V, 75A

The Egis 12V, 75-amp relay is designed specifically for automotive applications, providing exceptional electrical switching performance. Featuring bi-furcated contacts that enhance reliability and efficiency, this relay is ideal for demanding situations.

Applications:

• High intermittent amperage rating of 150 amps for short durations makes it ideal for temporary high-start-up amp draw applications.
• The bi-furcated contact design reduces contact bounce and enhances long-term reliability, minimizing heat buildup and contact wear.
• Offset input/output terminals coupled with an integrated divider design help prevent accidental shorts.
• With a temperature rating of 125 degrees C (257 degrees F), this relay is perfect for high-temperature environments like engine bays.

Specifications:

• Intermittent Current (@ 3 SEC): 150A
• Ambient Temperature Rating: -50 to 125 degrees C
• Max Continuous Current: 75A @ 23 degrees C
• Electrical Endurance: 100,000 cycles
• Initial Contact Resistance: 50 mOhm (6VDC)
• Operating Voltage Range: 8.8-16VDC

The Egis 12V 75A High-Performance Automotive Relay, part number 901488, is an electrical switching component for demanding automotive applications. It is designed for IT and fleet managers requiring reliable power management in vehicles, particularly in high-temperature environments such as engine bays, with an ambient temperature rating of -50 to 125 degrees C. This relay handles a maximum continuous current of 75A at 23 degrees C and an intermittent current of 150A for up to 3 seconds, making it suitable for temporary high-start-up amp draw applications. Its bi-furcated contacts enhance reliability and efficiency by reducing contact bounce and minimizing heat buildup. The unit features IP54 ingress protection, reinforced mounting tabs, and offset input/output terminals with an integrated divider to prevent accidental shorts. Its compact footprint and shielded dual flat male terminal connectors simplify installation in confined spaces.
