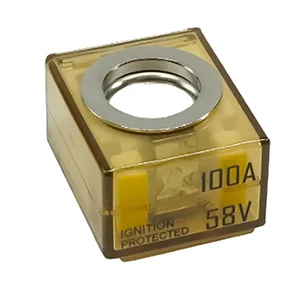

3603-100 - Egis Mobile Electric 100 Amp MRBF Terminal Fuse for Marine and Vehicle Systems

100 Amp MRBF Terminal Fuse

• Transparent design provides an easy visual indication of fuse status.
• Ignition protection compliant with SAE/J1171-ISO8846 standards.
• High interrupt rating meets ABYC requirements for DC main circuit protection in larger battery banks.
• Color-coded for easy identification of amperage ratings.

Product Features:

• Protects electrical circuits from short circuit events and over-current loads, preventing overheating and damage.
• High interrupt capacity safely safeguards circuits linked to large paralleled battery banks with significant power availability.
• Ignition protected, suitable for installation in enclosed compartments with potential explosive gases.
• Designed to withstand harsh environments, offering shock and vibration resistance ideal for marine and vehicle electrical systems.
• Sealed against dust and water intrusion to ensure reliable protection throughout the life of the electrical installation.
• 58 VDC rating supports 12 to 48V nominal applications effortlessly.
• Backed by a 4-year warranty, assuring the product's reliability and performance.

Specifications:

• Continuous Current (Amps): 100
• Max Voltage (VDC): 58
• Interrupt Rating @ 14 VDC (Amps): 10,000
• Interrupt Rating @ 48VDC (Amps): 5,000
• Interrupt Rating @ 58VDC (Amps): 2,000
• Ingress Protection: IP66

The Egis Mobile Electric 3603-100 is a 100 Amp MRBF (Marine Rated Battery Fuse) terminal fuse designed for protecting electrical circuits in marine and vehicle systems. This component safeguards against short circuit events and over-current loads, mitigating the risk of overheating and damage to connected equipment. It is suitable for integration into 12V to 48V nominal applications, with a maximum voltage rating of 58 VDC. The fuse features a transparent design for visual status indication and is color-coded for amperage identification. Its ignition protection complies with SAE/J1171-ISO8846 standards, making it safe for use in enclosed compartments where explosive gases may be present. With an IP66 ingress protection rating, it is sealed against dust and water, ensuring reliable performance in harsh environments. The high interrupt rating meets ABYC requirements for DC main circuit protection, making it suitable for larger battery banks with significant power availability.
