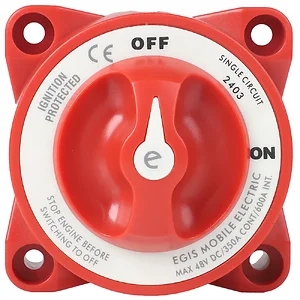

2403 - Egis Mobile Electric Egis E-Series 350A Battery Switch Off/On

E-Series 350A Battery Switch Off/On

Sealed Against Dust & Water Intrusion - To ensure reliable circuit protection for the life of the electrical system installation.

Ignition Protected - Safe for installation in closed compartments with potential explosive gases.

Serrated Flange Lock Nuts - Improves resistance to cable terminal loosening in high-vibration environments.

Flexible Mounting Options - Allow for multiple mounting configurations and a variety of installation types.

Harsh Environment Design - With stainless steel hardware, serrated flange nuts, and high-temperature materials.

Specifications:

• Maximum Voltage (Single Circuit): 48 Vdc
• Maximum Voltage (Selector / Dual Circuit): 32 Vdc
• Stud Size And Thread: 3/8”-16
• Terminal Stud Torque: 140 in-lbs (15.8 N-m)
• Ring Terminal Size Acceptance: 3/8” (M10)
• Mounting Holes: #1/4" (M6) Screw
• Live Switching Rating: 25 Amps
• Ignition Protection Rating: SAE J1171 / ISO 8846
• Bulkhead / Panel - Mounting Hole Size: 3-5/8" Diameter
• Cable Size to Meet Rating: 4/0 AWG

The Egis E-Series 350A Battery Switch Off/On, part number 2403, is designed for managing single-circuit battery power in demanding environments. This switch provides a reliable off/on function for electrical systems up to 48 Vdc. Its construction features sealing against dust and water intrusion, contributing to consistent performance over time. Ignition protection, rated to SAE J1171 / ISO 8846, allows for safe installation in enclosed compartments where explosive gases might be present. The design incorporates stainless steel hardware and serrated flange lock nuts to enhance resistance to cable terminal loosening, which is beneficial in high-vibration applications. Flexible mounting options support various installation types, making it suitable for IT infrastructure or industrial settings requiring robust power control.
