Product Overview

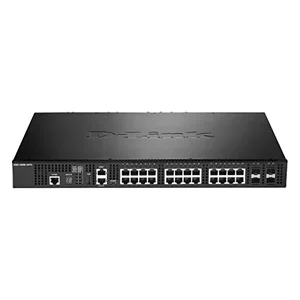

D-Link’s DXS-3400 Series Layer 3 Stackable 10 GbE Managed Switches are compact, high-performance switches that feature wire speed 10-Gigabit Ethernet switching, routing, and ultra-low latency. The 1U height and high port density make the DXS-3400 Series suitable for enterprise and campus environments where space is at a premium. 10GbE copper and fiber versions are available. The DXS-3400-24TC includes twenty (20) 10GBASE-T (RJ45) ports and four (4) 10GbE “Combo” ports (RJ45/SFP+). The DXS-3400-24SC includes twenty (20) 10GbE optical (SFP+) ports and four (4) 10GbE “Combo” ports (RJ45/SFP+).
Technical Specifications
Interfaces
10GBASE-T (RJ45) ports: 20
10GbE Combo Ports (RJ45/SFP+) : 4
Console Port : RJ45 and Mini USB console ports for out-of-band CLI management
Management Port : 10/100/1000BASE-T RJ45 Ethernet for out-of-band IP management
Alarm Port : RJ45
USB Port : USB 2.0 Type A
Performance
Switch Capacity : 480 Gbps
Max. Forwarding Rate : 357.12 Mpps
Packet Buffer Memory : 4 MBytes
MAC Address Table : Up to 48K entries
MTBF
TBD
Heat Dissipation
557.94 BTU/hr
Power Input
100 to 240 VAC, 50/60 Hz, 2A
Max Power Consumption
159.8 W
Standby Power Consumption
85.1 W
Operating Temperature
23oF to 122oF (-5oC to 50oC)
Storage Temperature
-40oF to 158oF (-40oC to 70oC)
Operating Humidity
10% to 95% RH
Storage Humidity
5% to 95% RH
Safety
cUL, CB, CE, CCC, BSMI
EMI/EMC
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Item Dimension (L"xW"xH")
18 x 15 x 2
Weight
14.33 lb
Warranty Information
Lifetime
