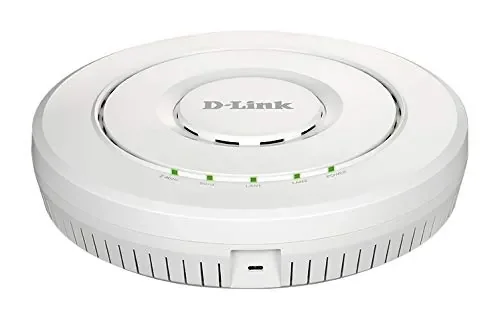

DWL-8620AP - D-link Network DWL-8620AP Unified Wireless Dual-Band 4x4 Wave2 Access Point

General
Wireless Interface
IEEE 802.11b/g/n 2.4 GHz wireless
IEEE 802.11/a/n/ac Wave 2 5 GHz wireless
MIMO
4 x 4
Data Rate
2.4 GHz - Up to 800 Mbps
5 GHz - Up to 1733 Mbps
Antenna
Internal omnidirectional antennas
2.4 GHz: 3 dBi
5 GHz: 4 dBi
Operating Frequency
2400 to 2483.5 MHz
5150 to 5850 MHz
Operating Channels
1 to 13 channels for 2.4 GHz band (per country code)
36 to 165 channels for 5 GHz band (per country code)
Ethernet Interface
2 x 10/100/1000BASE-T LAN port
Console Port
RJ-45 Functionality
Advanced Features
Auto Channel selection
802.1p Quality of Service (QoS)
Wireless Multimedia (WMM)
Wireless Distribution System (WDS)
Band steering
Airtime Fairness
LACP Link Aggregation
IEEE 802.11k Fast Roaming Management
Operating Mode
Standalone mode
Managed mode - Centrally managed by D-Link Wireless Controller
Management Interfaces
Web-based User Interface (Web UI)
Telnet/SSH
Command Line Interface (CLI)
SNMP v1/v2c/v3 Security
SSID Security
Up to 32 SSIDs, 16 per radio
802.1Q VLAN
Station Isolation
Wireless Security
WPA/WPA2 Personal/ Enterprise
AES
TKIP
Detection and Prevention
Rogue and Valid AP Classification
Authentication
MAC Address Filtering Physical
Power Supply
Supports 802.3at PoE PD on LAN 1 Port
External power adapter: 12 V DC 2.5 A (not included)
Power over Ethernet
IEEE 802.3at
Maximum Power Consumption
24.24 W
Enclosure
Bottom cover - plastic
Top cover - plastic
UL2043-certified chassis
Temperature
Operating: 0 to 40 ^oC (32 to 104 ^oF)
Storage: -20 to 65 ^oC (-4 to 149 ^oF)
Humidity
Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
MTBF
463,255 hours
Certifications
CE
EN55032, EN55024, EN61000-3-2, EN61000-3-3, EN60601-1-2 (Medical electrical equipment), EN301489-1, EN301489-17, EN300328, EN301893
FCC
IC
cUL+UL
CB
RCM
NCC
BSMI
UL2043 Item Dimension (L"xW"xH")
12 x 12 x 4

Weight
5 lbs

Warranty Information
Lifetime
