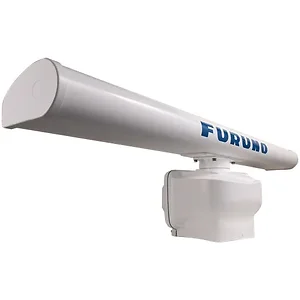

DRS25AX/3 - Furuno 25Kw X-BAND Pedestal with a 3.5ft Antenna

Furuno DRS25AX 25kW X-Band Radar with3.5' antenna. No longer includes cable

• 25kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking™
• Bird Mode
• New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS25AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

• Scanner Unit
• Fuse ATV10A60V
• Corrosion-proof pad x 4
• Hex Nut M12 x 8
• Spring Washer M12 x 4
• Flat Washer M12 x 4
• Hex Stud M12x70 x 4
• Installation Manual
• Mounting Template
• Environmental Data Sheet
• XN10A/3.5 3.5' Antenna

The Furuno DRS25AX/3 is a 25kW X-Band Radar system designed for marine applications, featuring a 3.5ft antenna. This unit is suitable for businesses requiring enhanced target detection capabilities, offering a minimum detection range of 20 meters and a maximum range of 96 nautical miles. It integrates Fast Target Tracking, which provides instant display of target course and speed vectors, contributing to improved situational awareness. The system operates on a 24V DC input, with a converter necessary for 12V power systems. The redesigned pedestal unit is 20% lighter than prior models and incorporates a low-noise motor. Installation is simplified as it does not require opening the pedestal unit and no external PSU is needed, which can reduce overall system costs. This radar is compatible with NavNet TZtouch and NavNet TZtouch2 systems.
