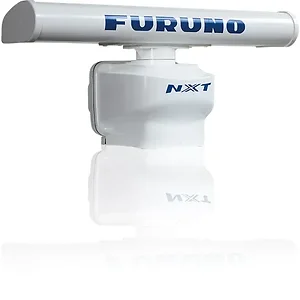

DRS12ANXT/3 - Furuno DRS12ANXT 100 Watt Solid State Radar 15m Cable and 3ft Antenna

Furuno DRS12ANXT 100 Watt Solid-State Doppler Radar with 3.5' antenna

The Furuno NXT Radar is the next step in Radar evolution; a Solid-State Radar with pulse compression, Target Analyzer™ and Fast Target Tracking™ utilizing Doppler technology. Combined with FURUNO exclusive RezBoost™ technology for beam sharpening, NXT packs the performance of a larger Radar in a more compact package.

NXT was the first Radar in the world to use the new Furuno exclusive Target Analyzer™ function, where targets that are approaching your vessel automatically change color. Green targets are targets that stay stationary, or are moving away from you, while red targets are moving towards your vessel. Target Analyzer™ works independent of vessel speed, both your own vessels and target vessels, with minor limitations. Echoes dynamically change colors as targets approach, or get farther away from your vessel. Target Analyzer™ can increase safety, as well as improve situational awareness.

Once a target has been selected, a speed and course vector is displayed in seconds. With accurate tracking information, estimation of other vessel's course and speed is greatly simplified. With Doppler technology, any vessel approaching yours will automatically display a target vector, as well as sound an alarm.

For the first time Furuno's exclusive RezBoost™ technology is used in one of our Radar units, with impressive performance. With RezBoost™ set to MAX, the sharpness of a much larger open array antenna can be achieved.

• RSB137-125 Pedestal
• 001-512-620-00 15m Cable
• XN10A-3.5 3.5' Antenna

The Furuno DRS12ANXT 100 Watt Solid State Radar, part number DRS12ANXT/3, is an X-Band open array radar system designed for marine applications requiring advanced target detection and situational awareness. This unit is suitable for IT buyers and professionals managing vessel navigation and safety systems. It features solid-state Doppler technology, which enables functions like Target Analyzer� and Fast Target Tracking�. Target Analyzer� differentiates approaching targets by color (red for approaching, green for stationary or receding), enhancing safety and awareness by visually highlighting potential collision risks. The system also utilizes Furuno's RezBoost� technology to sharpen the beam, providing performance comparable to larger open array antennas within a more compact 3.5-foot antenna size. With a 100W power output and a 96 nautical mile range, this radar is intended for vessels operating in environments where precise target identification and tracking are critical for operational efficiency and safety.
