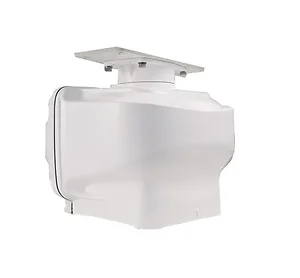

DRS25AX - Furuno 25Kw X-BAND Pedestal No Cable

Furuno DRS25AX 25kW X-Band Radar Pedestal Only

• 25kW Power Output
• Enhanced target detection, both short and long range
• Minimum detection range of just 20 m
• Fast Target Tracking™
• Bird Mode
• New pedestal unit 20% lighter than previous unit, updated with new, low noise motor
• No PSU required, decreasing total costs
• Easy installation without the need to open pedestal unit
• New smart-connector cable
• The DRS25AX is a 24V system; a converter will be required for use with 12V power systems
• Compatible with NavNet TZtouch and NavNet TZtouch2 (not compatible with NavNet 3D or earlier NavNet models)

Pushing the boundaries of what is possible with conventional Radar technology, DRS25AX "X-Class" marks yet another leap forward for FURUNO. Improved in almost all aspects, DRS25AX "X-Class" Radar features improved short range detection, as well as an impressive long range detection of up to 96 nautical miles.

The newly redesigned pedestal unit is 20% lighter than previous models and features an updated motor for significantly lower noise levels. Combined with an updated smart-connector cable, installation and maintenance is simpler than ever before.

Fast Target Tracking™ function adopted from our commercial Radar FAR3000, is also available on the DRS25AX "X-Class." Target course and speed vectors are displayed instantly with the press of a button. Target vectors increase situational awareness and can increase overall safety on your vessel.

• Scanner Unit
• Fuse ATV10A60V
• Corrosion-proof pad x 4
• Hex Nut M12 x 8
• Spring Washer M12 x 4
• Flat Washer M12 x 4
• Hex Stud M12x70 x 4
• Installation Manual
• Mounting Template
• Environmental Data Sheet
• Signal/Power Cable Assy 15M

The Furuno DRS25AX is a 25kW X-Band radar pedestal designed for marine applications, offering enhanced target detection capabilities. This unit is suitable for commercial vessels or larger recreational craft requiring robust radar performance. It provides a minimum detection range of 20 meters and a maximum range of 96 nautical miles, aiding in navigation and situational awareness. The DRS25AX pedestal is 20% lighter than previous models and features a low-noise motor, simplifying installation and reducing operational sound. It operates on a 24V DC input, with a converter necessary for 12V systems. Compatibility is specific to NavNet TZtouch and NavNet TZtouch2 systems. The unit's Fast Target Tracking function, adopted from commercial radar, displays target course and speed vectors to improve safety and awareness on the water. This pedestal unit does not require a separate PSU, contributing to reduced total system costs.
