Out of Stock
Condition: New
Technical InformationApplication/Usage: Data NetworkingApplication/Usage: Optical NetworkInterfaces/PortsInterfaces/Ports Details: 1 x 1000Base-SX NetworkMedia & PerformanceMedia Type Supported: Optical FiberFiber Mode Supported: Multi-modeEthernet Technology: Gigabit EthernetNetwork Technology: 1000Base-SXMiscellaneousCompatibility: D-Link DIS-100G Series Industrial Gigabit Unmanaged Switches
Features
Hot Pluggable
MSA Compliant
RoHS Compliant
Standard
Compliant Standard:IEEE802.3z
1000BASE-SX
Transceiver Type:SFP
Fiber Channel FC-PI standard:100-M6-SN-I/100-M5-SN-I
Fiber Media support:Multi-Mode
Distance:62.5/125um: 300m
50/125um: 550m
Speed
1.25Gbps Interface
Connector:Duplex LC Connector
Single/bi Direction:Single-direction
Wavelength:850nm
Output Optical Power (TX Optical Power):MAX.: -3dBm
MIN.: -8 dBm
Input Optical Power (RX Optical Power):MAX.: - 3 dBm
MIN.: - 22 dBm
Sensitivity: -22dBm
Cable Type:Multi-mode 50/125um or 62.5/125um fibre Operating
Power: 3.3V
Max Input Current:300mA
Power Budget (MIN Power Budget):14d B
MAX Power Budget:19d B
Heat Generated:1.782kJ/h
MTBF (hours)
224,167 hours Physical and Environment
Operation Temperature:-40 to 85oC
Storage Temperature:-40 to 85oC
Humidity (Operating):5% to 95%
Humidity (Storage):5% to 95%
Bail latch colour: Black
Emission (EMI) and Safety Certifications
EMI:CE, FCC, VCCI
Safety:LVD, EN60825-1, EN 60825-2 Item Dimension (L inchxW inchxH inch)
6 x 3 x 2 Weight
1.00lb Warranty Information
2 year limited

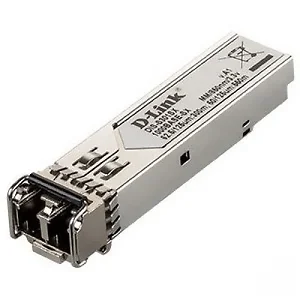

D-link DIS-S301SX Networking DIS-S301SX 1000BASE-SX Multimode SFP Optical Transceiver -40 t/+85C Brown Box
