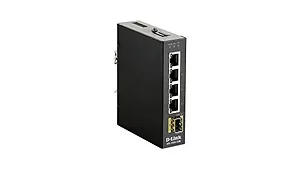

DIS-100G-5SW - D-link 5-PORT UNMNGD INDUSTRIAL SWITCH INCL. 1 SFP PORT, -40C TO +75C

General
Hardware Version
DIS-100G-5SW: A1
Number of Ports
DIS-100G-5SW:
4 x 10/100/1000BASE-T ports
1 x SFP port
Port Functions
IEEE 802.3 for Ethernet
IEEE 802.3u for Fast Ethernet
IEEE 802.3ab for Gigabit Ethernet
IEEE 802.3z for Gigabit fiber
IEEE 802.3x Flow Control
IEEE 802.3az Energy-Efficient Ethernet (EEE)
Media Interface Exchange
Auto-MDI/MDIX adjustment for all twisted pair ports
Performance
Switching Capacity
10 Gbps
Maximum Forwarding Rate
7.44 Mpps
MAC Address Table Size
Up to 2K entries
Transmission Method
Store-and-forward
Jumbo Frame
9 KB
Advanced Features
Broadcast/Multicast/Unicast Storm Control
IEEE 802.1p Quality of Service (QoS) - 4 hardware queues per port
Physical
Diagnostic LEDs
DIS-100G-5SW:
ALM
P1/P2
Link/Activity/Speed
Power Input
DIS-100G-5SW:
12 to 58 V DC terminal block dual input
Power Consumption
DIS-100G-5SW:
Maximum: 3.57 W
Alarm Relay
1 A at 24 V
Heat Dissipation
DIS-100G-5SW:
12.18 BTU/hr
Ventilation
Fanless, passive cooling
Operating Temperature
-40 to 75 ^oC (-40 to 167 ^oF)
Storage Temperature
-40 to 85 ^oC (-40 to 185 ^oF)
Operating Humidity
0% to 95% RH, non-condensing
Storage Humidity
0% to 95% RH, non-condensing
Material
IP30-rated metal casing
Installation
DIN rail/wall-mountable
MTBF
>25 years
Certifications
UL/CE/FCC
NEMA-TS2
EN50121-4 compliant
Safety
UL60950-1
EMI
47 CFR FCC Part 15 Subpart B (Class A)
ICES-003 Issue 6 (Class A)
EMC
EN61000-6-2
EN61000-6-4
EMS
EN 61000-4-2 ESD Level 3
EN 61000-4-3 RS Level 3
EN 61000-4-4 EFT Level 3
EN 61000-4-5 Surge Level 3
EN 61000-4-6 CS Level 3
EN 61000-4-8
Environmental Tests
IEC 60068-2-27 Shock
IEC 60068-2-32 Freefall
IEC 60068-2-6 Vibration
Order Information
DIS-100G-5SW 4 x 10/100/1000 Mbps ports + 1 x SFP port switch with -40 to 75 ^oC operating range
Optional SFP Transceivers
DIS-S310LX 1000BASE-LX, single-mode, 10 km, -40 to 85 ^oC operating temperature
DIS-S301SX 1000BASE-SX, multi-mode, 550 m, -40 to 85 ^oC operating temperature
Optional Accessories
DPE-SP110 Outdoor PoE Ethernet Surge Protector
DPE-SP110I Ethernet Surge Protector
Item Dimension (L"xW"xH")
8 x 6 x 4
Weight
2.00 lb
Warranty Information
Limited Lifetime
