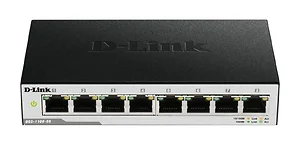

D-Link?s DGS-1100 Series Gigabit Smart Managed Switches provide an affordable solution for businesses of all sizes that require simple network management. The DGS-1100 switches consist of 5, 8, 10,16, 24 and 26 Gigabit port models with a wide variety of functions and features. The 5 and 8 port models come in compact metal desktop enclosures, while the 10, 16, 24 and 26 port models come in metal enclosures that support either desktop or rack mounting. Four models support 802.3af/at Power over Ethernet (PoE), with a range of PoE power budgets from 64W to 370W. There are also two PoE-powered models, one of which has the ability to pass-through power to one or two PoE devices downstream. D-Link offers a Lifetime Warranty and Next Business Day (NBD) hardware replacement on the DGS-1100 Series Smart Managed Gigabit switches to further its commitment to product quality and long-term customer confidence.
Technical Specifications
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x Device Type Switch - 8 ports managed Enclosure Type Desktop Features Flow Control Layer 2 Switching DHCP Support Trunking VLAN Support IGMP Snooping Port Mirroring Store and Forward Broadcast Storm Control Multicast Storm Control Unicast Storm Control Quality of Service (QoS) Bandwidth Control MAC Address Table Size 8K Entries Ports 8 x 10/100/1000 Remote Management Protocol HTTP Status Indicators Link Activity Prot Transmission Speed Power Humidity Range Operating 10 95% Humidity Range Storage 5 95% Max Operating Temperature 104 F Max Storage Temperature 158 F Min Operating Temperature 32 F Min Storage Temperature 14 F Interface 8 x 10Base-T / 100Base-TX / 1000Base-T - RJ45 Compliant Standards FCC Class A certified cUL VCCI Class A ITE Power Device Power Supply Internal Voltage Required AC 120/230 V (50/60 Hz) Item Dimension (L"xW"xH") 6.73 x 3.86 x 1.10
