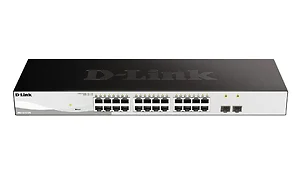

DGS121026 - D-link Network DGS-1210-26 DGS-1210 Smart Managed 26 Port with 2 Gigabit SFP Ports Brown box

The D-Link DGS-1210 Series Smart Managed Switches are the latest generation of switches to provide increased Power over Ethernet (PoE) output, a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.


The DGS-1210 Series switches support 8, 24, or 48 10/100/1000BASE-T ports. Each switch also supports an additional 2 or 4 Gigabit SFP ports for optical connections using multimode or singlemode SFP transceivers.

Hardware Version
Rev. F
10/100/1000 Ports
24
COMBO Ports (10/100/1000 or 100/1000 SFP)
-
100/1000 SFP Ports
2
Port Standards and Functions
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-FX 100 Mbps over fiber optic
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted- pair copper)
IEEE 802.3z 1000BASE-X 1 Gbps over fiber optic
IEEE 802.3az Energy Efficient Ethernet (EEE)
IEEE 802.3x Flow Control
IEEE 802.3af/at compliance (for PoE ports on PoE models)
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.)
Duplex Mode
Full/half-duplex for 10/100 Mbps
Full-duplex for 1000 Mbps
Media Interface Exchange
Auto MDI/MDIX adjustment for all twisted-pair ports
Switching Capacity
52 Gbps
Transmission Method
Store-and-forward
MAC Address Table
8K entries
Static MAC Addresses
256 entries
Max. 64 Byte Packet Fwd Rate
38.7 Mpps
Packet Buffer Memory
4.1 Mbits
CPU Memory
DDR3 128 MB
Flash Memory
32 MB
PoE Standards
N/A
PoE Capable Ports
N/A
PoE Power Budget
N/A
Power (per device)
Yes
