Technical Specifications
Port Standards and Functions
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
802.3ae 10 GbE,
IEEE 802.3x Flow Control for Full-Duplex Mode,
Auto-negotiation Number of Ports

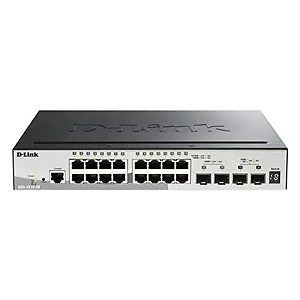

DGS-1510-20: 16 10/100/1000 Mbps, 2 Gigabit SFP, 2 10G SFP+
Network Cables
UTP Cat. 5, Cat. 5e (100 m max.) EIA/TIA-568 100-ohm STP (100 m max.) Full/Half Duplex
Full/half duplex for 10/100 Mbps and Gigabit speed
Media Interface Exchange
Auto or configurable MDI/MDIX Performance
Switching Capacity
DGS-1510-20: 76 Gbps
Transmission Method
Store-and-forward
MAC Address Table
16,000 entries per device
MAC Address Update
Up to 512 static MAC entries,
Enable/disable auto-learning of MAC addresses Maximum 64 bytes Packet Forwarding Rate
DGS-1510-20: 56.54 Mpps
Packet Buffer Memory
DGS-1510-20: 1.5 MB per device
PoE (DGS-1510-28P only)
PoE Standard IEEE 802.3af, 802.3at
PoE Capable Ports Ports 1 to 24: Up to 30 W
PoE Power Budget Max. 193 W AC Input
100 to 240 VAC 50/60 Hz internal universal power supply
Maximum Power Consumption
DGS-1510-20: 20.3 W
Standby Power Consumption
DGS-1510-20: 12.2 W
Smart Fan Quantity
DGS-1510-20: 1 Acoustics
DGS-1510-20: 43.8 dB(A)
Heat Dissipation
DGS-1510-20: 41.602 BTU/hr
Dimensions
DGS-1510-20:
11 x 7.09 x 1.73 inches (280 x 180 x 44 mm)
19 standard rack mounting width, 1U height Diagnostic LEDs
Power/Stacking ID/Fan (per device),
Link/Activity/Speed (per 10/100/1000 Mbps port),
Link/Activity/Speed (per Gigabit SFP port),
Link/Activity/Speed (per 10G SFP+ port) Certifications
CE, FCC, C-Tick, VCCI, BSMI, CCC
Safety cUL, CB Item Dimension (L"xW"xH"):
22.17 x 14.33 x 14.92
Weight:
32.28 lb
Warranty Information:
Limited Lifetime
