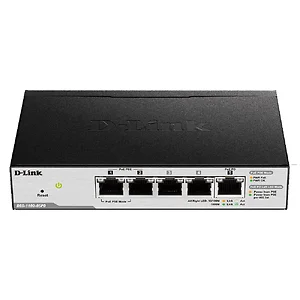

DGS-1100-05PD - D-link Network DGS-1100-05PD DGS-1100 Smart Managed 5-Port PoE Gigabit Switch Retail

The DGS-1100-05PD is a unique 5-port switch powered through the network cable by an upstream PoE power source (PoE switch or injector). As a "PoE extender", it also has the ability to propagate (pass-through) PoE power further downstream to one or two Powered Devices (PDs). Powered by PoE The DGS-1100-05PD is powered by a PoE switch or PoE injector that can be located up to 100m away. As such, this device is intended for applications where a small 5-port Gigabit switch is required but AC power is not close by. The upstream PoE source may support either 802.3af or 802.3at. One switch port is used for the power input (port 5) and the other four ports are available as standard 10/100/1000 ports for networked devices, such as PCs, printers, etc. PoE Extender The DGS-1100-05PD switch can also "pass-through" PoE power to one or two downstream PDs (such as IP Cameras, IP Phones, Wireless APs). The PoE budget for this feature is dependent on the PoE source (802.3af or 802.3at) and the PD's PoE Classification. PoE pass-through capability makes the DGS-1100-05PD ideal for IP Surveillance networks when cameras are located beyond 100m from the main PoE switch. As an additional benefit, because the switch is smart-managed, an administrator can control various PoE functions through the user interface, such as remotely rebooting cameras or access points, from anywhere on the network.
