SKU: HHZQFSS3KE |  Mfg. Part: DGS-1100-05  | UPC: 790069386244  |
 3 Reviews  |     Share

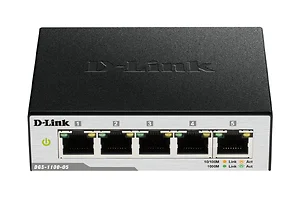

DGS-1100-05 - D-link Network DGS-1100-05 5Port Gigabit Easy Smart Switch Retail

Special Order
Ships in 1-2 weeks
Condition: New

$63.00  $85.05
Need 10+? Request a volume quote
 Free Shipping for this Item

Product Overview

D-Link?s DGS-1100 Series Gigabit Smart Managed Switches provide an affordable solution for businesses of all sizes that require simple network management. The DGS-1100 switches consist of 5, 8, 10, 16, 24 and 26 Gigabit port models with a wide variety of functions and features. The 5 and 8 port models come in compact metal desktop enclosures, while the 10, 16, 24 and 26 port models come in metal enclosures that support either desktop or rack mounting. Four models support 802.3af/at Power over Ethernet (PoE), with a range of PoE power budgets from 64W to 370W. There are also two PoE-powered models, one of which has the ability to pass-through power to one or two PoE devices downstream.

Technical Specifications

Port Standard Functions
IEEE 802.3 compliant
IEEE 802.3u compliant
IEEE 802.3ab compliance
Supports Half/Full-duplex operation at 10/100Mbps
Supports Full-duplex operation at 1000Mbps
Support Auto-Negotiation for each port
Auto MDI/MDIX
IEEE 802.3x Flow Control support
IEEE 802.3az compliant Number of Ports
5 Switching Capacity
10Gbps Max. Forwarding Rate
7.44 Mpps Transmission Method
8K Entries Packet Buffer
256KB Power Input
100 to 240 VAC, 50 to 60 Hz
External Universal Power Supply Max. Power Consumption
3.35 Watts Standy Power Consumption
0.99 Watts Fan Quantity
Fanless Acoustics
0 dBA Heat Dissipation
11.43 BTU/hr Diagnostic LEDs
Power (Per Device)
Link/Activity/Speed (Per Port) Certifications
FCC Class A, CE Class A, VCCI Class A Safety
UL/cUL, CE LVD MTBF
532,838 Hours L2 Features
Flow Control: 802.3x Flow Control, HOL Blocking Prevention
IGMP Snooping: IGMP v1/v2 Snooping, Supports 32 Groups
Loopback Detection
Static Trunk: 1 group, 2-4 ports per group (DGS-1100-05), 2 groups, 2-4 ports per group (DGS-1100-08), 8 groups, 2-4 ports per group (DGS-1100-16/24)
Port Mirroring: One-to-One, Many-to-One (DGS-1100-16/24 only)
Cable Diagnostics Statistics: Tx Ok, Tx Error, Rx Ok, Rx Error VLAN
Port-based
802.1Q Tagged VLAN
Surveillance VLAN
Voice VLAN
VLAN Group: Supports 32 static VLAN groups, Max. 4094 VIDs QoS
802.1p Quality of Service
4 queues per port Security
Static MAC: Max. 32 entries (DGS-1100-05/08), Max. 128 entries (DGS-1100-16/24)
Broadcast/Multicast/Unknown Unicast Storm Control

Product Details

  • Manufacturer:
  • Model Number:
  • ASIN:
  • UPC:
  • Condition:
  • Weight:
  • Dimensions:
  • Updated:
  • Added:
  • D-Link
  • DGS-1100-05
  • B00AKRTLXA
  • 790069386244
  • New
  • 1 lbs
  • 0 X 0 X 0
  • May 30, 2026
  • Jan 11, 2013
Product Identifiers: Brand: D-link • Part #: DGS-1100-05 • UPC: 790069386244 • ASIN: B00AKRTLXA • Category: Network Switches

DGS-1100-05 - D-link Network DGS-1100-05 5Port Gigabit Easy Smart Switch Retail
