Condition: New

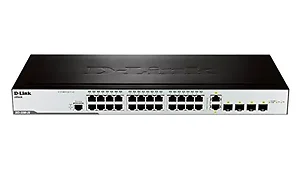

The DES-3200-28 is a member of D-Link’s Layer 2 xStack Managed Switch family designed for the SMB, Metro ETTX, FTTX, and Enterprise markets. The DES-3200-28 provides 24 10/100 Mbps Fast Ethernet connections plus 2 combo Gigabit/SFP ports and 2 dedicated SFP ports. It offers the beneficial design of 2 Gigabit/SFP Combo ports and 2 dedicated SFP ports providing up to 4 Gbps uplink bandwidth or dual Ethernet ring topology support. Its quiet operation and high reliability are achieved with 6kv surge protection on all Ethernet ports no fans. Advanced security and management features, allows you to easily secure, control, and monitor your network.
Interface
24 10/100BASE-TX
2 SFP
2 Combo 1000BASE-T/SFP
Switching Capacity
12.8 Gbps
Packet Performance Rate
9.5 Mpps
MAC Address Table-Size
8K SDRAM for CPU
128 MB
Packet Buffer
384 KB
Flash Memory
16 MB
Jumbo Frame
2048 Bytes
MTBF (Hours)
668,867 hours Acoustic
0 dB
Heat Dissipation
48.4 BTU per hour
Power Input
100 to 240 VAC, 50 to 60 Hz Internal Universal Power Supply
Max Power Consumption
14.2 watts Ventilation
Fanless
3rd Party Certifications
MEF 21, IPv6 Ready Logo
Surge Protection
All Ethernet ports have 6 KV surge protection
L2 Features
Asymmetric VLAN/ISM VLAN
Double VLAN (Q-in-Q)
Spanning Tree Protocols: 802.1D-2004
Edition, 802.1w and 802.1s
802.1AX and 802.3ad Link Aggregation Security
Port Security/SSH/SSL
Access Control List (ACL)
802.1X Port-based/Host-based Access
Control
802.1X Guest VLAN
IP-MAC-Port Binding Traffic Monitoring and Bandwidth Control
Port Mirroring/Bandwidth Control
Broadcast/Multicast/Unicast Storm
Control
Management
SNMP v1, v2c, v3 and RMON v1, v2
D-Link Single IP Management (SIM)
Network Load Balancing (NLB)
RADIUS/TACACS+ Authentication for
Management Access
Link Layer Discovery Protocol (LLDP)
D-link DES-3200-28 Network DES-3200-28 24Port 10/100 L2 Managed 4xCombo GE/SFPs Switch Retail
