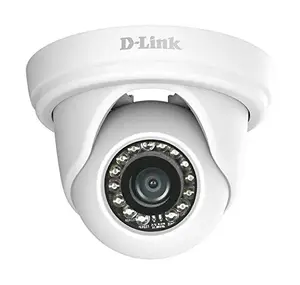

DEM-410T - D-link VIGILANCE FULL HD 2MP H.265 OUTDOOR MINI DOME NETWORK CAMERA

Camera
Camera Hardware Profile
1/2.7" 2 Megapixel progressive CMOS sensor
20 meter IR illumination distance
Minimum illumination:
Color (Day Mode), IR LEDs off: 1.0 lux
B/W (Night Mode), IR LEDs off: 0.5 lux
B/W (Night Mode), IR LEDs on: 0 lux
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom
Minimum object distance 0.5 m
Focal length: 3.6 mm
Aperture: F1.8
Angle of view:
(H) 88^o
(V) 50^o
(D) 97^o
Adjustment angle (non-motorized):
Vertical: 75^o
Horizontal: 360^o
Rotation: 360^o
Camera Housing
IP-66 compliant weatherproof housing
Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Configurable exposure time, brightness, saturation, contrast, sharpness
Wide Dynamic Range (WDR)
3D filtering
Video Compression
Simultaneous H.265/H.264/MJPEG format compression
H.265/H.264/MJPEG multicast streaming
JPEG for still images
Video Resolution
16:9 - 1920 x 1080, 1280 x 720, 800 x 448, 640 x 360 up to 30 fps
4:3 - 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480 up to 30 fps
External Device Interfaces
10/100 BASE-TX Ethernet port with PoE (Class 2)
Supports 802.3af PoE (Class 2)
Network
Network Protocols
IPv6
IPv4
ARP
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP/HTTPS
PPPoE
UPnP port forwarding
RTP/RTSP
IP filtering
Multicast
CoS
QoS/DSCP
SNMP
Bonjour
Security
Administrator and user group protection
Password authentication
HTTP and RTSP authentication
System Management
System Requirements for Web Interface
Operating system: Microsoft Windows 10/8/7 or Mac OS X 10.9 or higher
Browser: Internet Explorer 9 and higher (on Windows), Firefox 12-51, 52 ESR, Chrome 42 and higher, or Safari 9 and higher (on Mac OS X)
Event Management
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup
Remote Management
Take snapshots/video clips and save to local hard drive
Configuration interface accessible via web browser
D-ViewCam^TM System Requirements
Operating System:
32-bit: Windows 8 / 7 (SP1)
64-bit: Windows 10 / 8 / 7 (SP1) / Server 2012 / Server 2008 R2
Web Browser: Internet Explorer 8 or higher
Protocol: Standard TCP/IP
D-ViewCam^TM Software Functions
Remote management/control of up to 32 cameras
Supports all management functions provided in the web interface
Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options
General
Power Input
12 V DC / 1.5 A, 50/60 Hz
IEEE 802.3af PoE Class 2
Power Consumption
3.68 watts +/- 5% (PoE Class 2)
Temperature
Operating: -30 to 50^oC (-22 to 122^oF)
Storage: -20 to 70^oC (-4 to 158^oF)
