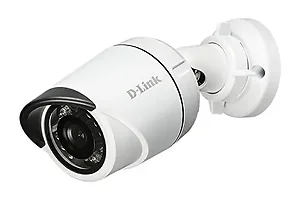

DCS-4705E - D-link Camera DCS-4705E Vigilance 5MP H.265 Outdoor Bullet Camera FHD 2560x1920 Retail

Camera Camera Hardware Profile
1/2.5 5-megapixel progressive CMOS sensor
30 metre IR illumination distance
Minimum illumination:
0.1 lux (color)
0.05 lux (B/W)
0 lux (IR LED on)
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom
Minimum object distance 0.5 m
Focal length: 2.8 mm
Aperture: F2.0
Angle of view:
(H) 90^o
(V) 50^o
(D) 104^o Camera Housing
IP66 compliant weatherproof housing
Wire-in bracket Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Configurable privacy mask zones
Temper detection alarm
Configurable shutter speed, brightness, saturation, contrast, and sharpness
WDR
3D filter Video Compression
Simultaneous H.265/H.264/MJPEG format compression
H.265/H.264/MJPEG multicast streaming
JPEG for still images Video Resolution
16:9 - 2592 x 1440 up to 15 fps
1920 x 1080
1280 x 720
800 x 448
640 x 360 up to 30 fps
4:3 - 2560 x 1920 up to 15 fps
1600 x 1200,
1440 x 1080,
1280 x 960,
800 x 600
640 x 480 up to 30 fps External Device Interface
10/100BASE-TX Fast Ethernet port
Supports 802.3af PoE Class 2 Network Network Protocols
IPv6
IPv4
TCP/IP
UDP
ARP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
802.1x
ONVIF-compliant
FTP client
HTTP server
HTTPS (TLS, disable SSL v3)
Samba client
PPPoE
Bonjour
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
Multicast
SNMP v1/v2c/v3
QoS/CoS Security
Administrator and user group protection
Password authentication
HTTP and RTSP authentication System Management
Event Management :
Motion detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup Remote Management
Remote management via D-ViewCam software
Configuration interface accessible via web browser
Remotely take snapshots/video clips and save to local hard drive System Requirements for Web Interface
Windows 10/8/7 or Mac OS X 10.9 and higher
Internet Explorer 9 and higher (on Windows), Firefox 12-51, 52 ESR, Chrome 42 and higher, or Safari 9 and higher (on Mac OS X). D-ViewCam System Requirements
Operating System:
32-bit: Windows 8 / 7 (SP1)
64-bit: Windows 10 / 8 / 7 (SP1) / Server 2012 / Server 2008 R2
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP D-ViewCam Software Functions
Remote management of up to 32 cameras
Supports all management functions provided in web interface
Viewing of up to 32 cameras on one screen
Scheduled, motion triggered, or manual recording options General External Power Adapter (not included)
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V DC 1.5 A Power Consumption
3.2 (DC) / 3.1 W (PoE) +/- 5% Temperature
Operating: -30 to 50 ^oC (-22 to 122 ^oF)
Storage: -20 to 70^o C (-4^o to 158^o F) Humidity
Operating: 20 % to 80 % non-condensing
Storage: 5 % to 95 % non-condensing
