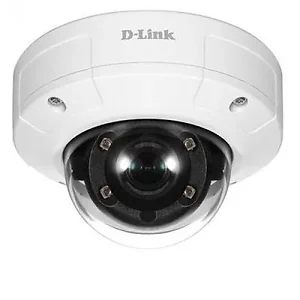

DCS-4633EV - D-link Camera DCS-4633EV Vigilance 3 Megapixel H.265 Outdoor Dome Camera Brown box

Camera Hardware Profile
1/3" 3 Megapixel Progressive CMOS Sensor
60 ft IR Illumination Distance
Minimum illumination
.01 Lux/F1.85 Color mode
0.008 Lux/F1.85 Black and White mode
Built-in Infrared-Cut Removable (ICR) Filter module
10x digital zoom
Minimum object distance 0.5M
Focal length: 2.8mm
Aperture F1.85
Angle of view:
105 ^o horizontal
80 ^o vertical
137 ^o diagonal
Adjusted Angle (non-motorized):
Horizontal: 350 ^o
Vertical: 60 ^o Camera Housing
IP66 compliant weatherproof housing
IK10 compliant vandal-proof housing Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
Configurable motion detection windows
Wide Dynamic Range (WDR)
Auto White Balance (AWB)
Auto Gain Control (AGC)
Configurable privacy mask zones
Configurable shutter speed, brightness, saturation, contrast, sharpness, and 3D filter Video Compression
Simultaneous H.265/H.264/MJPEG format compression
H.265/H.264/MJPEG multicast streaming
JPEG for still images Video Resolution
16:9 - 1920 x 1080, 1280 x 720, 640 x 360 up to 30 fps
4:3 - 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480 up to 30 fps External Device Interface
10/100 BASE-TX Ethernet port with PoE (802.3af)
microSD card slot (SD/SDHC/SDXC)
Supports 802.3af PoE Network Protocols
IPv6
IPv4
ARP
TCP/IP
UDP
ICMP
DHCP client
NTP client (D-Link)
DNS client
DDNS client (D-Link)
SMTP client
FTP client
HTTP / HTTPS
Samba client
PPPoE
UPnP port forwarding
RTP / RTSP/ RTCP
IP filtering
QoS/DSCP
CoS
Multicast
ONVIF compliant Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption System Requirements for Web Interface
Operating System: Windows 10 / 8 / 7
Browser: Internet Explorer, Firefox or Chrome Event Management
Motion detection
Tamper detection
Event notification and uploading of snapshots/video clips via e-mail or FTP
Supports multiple SMTP and FTP servers
Multiple event notifications
Multiple recording methods for easy backup Remote Management
Take snapshots/video clips and save to local hard drive or NAS via web browser
Configuration interface accessible via web browser D-ViewCam^TM System Requirements
Operating System: 32-bit Windows 8/7 (SP1)
Operating System: 64-bit Windows 10/8/7 (SP1) / Server 2012 / Server 208 R2
Web Browser: Internet Explorer 7 or higher
Protocol: Standard TCP/IP D-ViewCam^TM Software Functions
Remote management/control of up to 32 cameras
Supports all management functions provided in web interface
Viewing of up to 32 cameras on one screen
Scheduled motion triggered, or manual recording options Power Requirement
Input: 100 to 240 V AC, 50/60 Hz
Output: 12 V DC 1.5A Power Consumption
6 Watts +/-5%(PoE) Temperature
Operating: -22 ^o to 124 ^o F (-30 ^o to 50 ^o C)
Storage: -4 to 158 ^o F (-20 ^o to 70 ^o C) Humidity
Operating: 20% to 80% non-condensing
Storage: 5% to 95% non-condensing Certifications
CE
CE LVD
FCC
C-Tick Item Dimension (L inchxW inchxH inch)
9 x 6 x 4

Weight
2.00lb

Warranty Information
5-Year LImited
