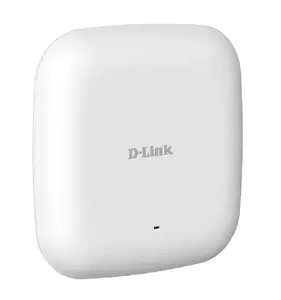

The DAP-2610 Wireless AC1300 Wave 2 Dual-Band PoE Access Point is designed to support small to medium business or enterprise environments by providing network administrators with secure and manageable dual-band wireless LAN options, and utilizing the cutting-edge speed of Wireless AC. The DAP-2610 delivers reliable, high-speed wireless performance using the latest 802.11ac Wave 2 standard with maximum wireless signal rates of up to 400 Mbps (256-QAM) over the 2.4 GHz band, and 900 Mbps over the 5 GHz band1 . This, coupled with support for the Wi-Fi Multimedia? (WMM) Quality of Service (QoS) feature, makes it an ideal access point for audio, video, and voice applications. When enabled, QoS allows the DAP-2610 to automatically prioritize network traffic according to the level of interactive streaming, such as HD movies or VoIP. The QoS feature can be adjusted through the DAP-2610 web GUI using a drop-down menu to select customized priority rules. Additionally, the DAP-2610 supports load balancing to ensure maximum performance by limiting the maximum number of users per access point.
Technical Specifications
Device Interfaces 1 IEEE 802.11a/b/g/n/ac Wave2 wireless 1 Gigabit LAN (supports PoE) Standards IEEE 802.11a/b/g/n/ac IEEE 802.3u/ab IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3af Power over Ethernet Antennas 2 internal dual-band 3dBi omni antennas Operating Frequency 2.4 GHz band: 2.4 to 2.4835 GHz 5 GHz band: 5.15 to 5.35 GHz, 5.47 to 5.85 GHz Maximum Output Power 20 dBm for 2.4 GHz 20 dBm for 5 GHz Data Signal Rate 2.4 GHz Up to 400 Mbps 5 GHz Up to 867 Mbps Security WPA-Personal WPA-Enterprise WPA2-Personal WPA2-Enterprise WEP 64/128-bit encryption SSID broadcast disable MAC address access control Network Access Protection (NAP) Internal RADIUS server Network Management Telnet Secure Telnet (SSH) Web (HTTP) Secure Socket Layer (SSL) Traffic control SNMP v1/v2c/v3 D-Link Central Wi-Fi Manager AP Array LEDs Power/status Power Supply External power adapter: 12 V/1 A IEEE 802.3af PoE Maximum Power Consumption 12 W Temperature Operating: 0 to 40oC (32 to 104oF) Storage: -20 to 65oC (-4 to 149oF) Humidity Operating: 10% to 90% non-condensing Storage: 5% to 95% non-condensing Meantime Between Failure (MTBF) > 30,000 hours Certifications FCC IC CE 4 UL Wi-Fi Certified Item Dimension (L inchxW inchxH inch) 7 x 7 x 2
